CMT 922.325.11A 2,5 mm Disc cutter with bearing + spindle shank 8 mm

CMT 922.32511A 2,5 mm Disc cutter with bearing + spindle shank 8 mm

• The uses for these cutters are numerous: machining pins or slots in general, making slots for mouldings or wooden spacers (the 822.340.11 4mm cutter), milling male and female teeth or tees
• Each cutter has cutting heads in carbide clay grain and is coated with fluorocarbonide PTFE resin of orange color
• The CMT profile is designed to prevent recoil
• The available shafts are from 6 - 8 - 12mm
• Included is a 22mm bearing that allows for a cutting depth of 12.8mm
• The disc cutters and the associated shafts are also available separately

Features

• High-grade widia steel
• 3 CUTTING POINTS
• Bearing provided

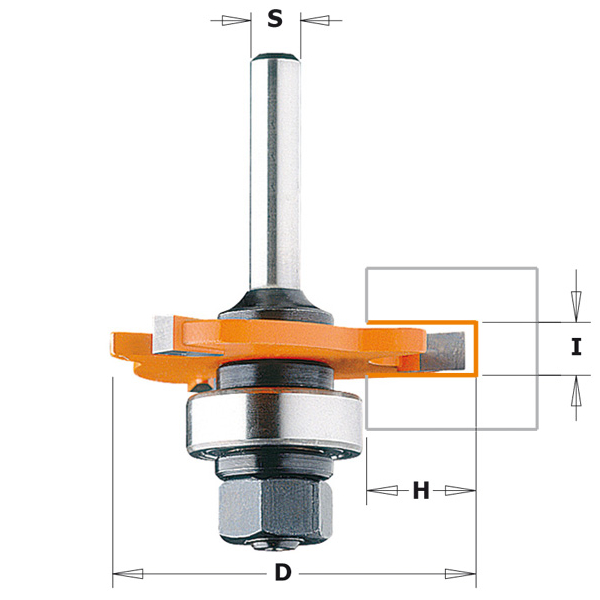

Specifications

• Disc thickness I=2.5 mm
• Cutting diameter D=47.6 mm
• Cutting depth H=12.8 mm
• Intake S=8 mm
