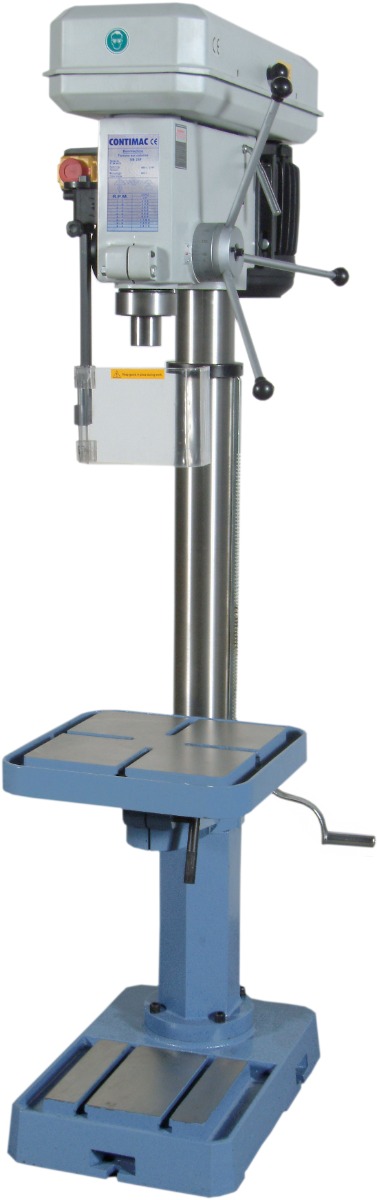

Contimac 35048 sb 32 F Column drilling machine 400 volts

Contimac 35048 sb 32 F Column drilling machine 400 volts

Heavy duty belt-driven column drill(floor model) on power current. Ideal machine for the maintenance and construction workshop.

Features

• Ideal for intensive use due to over-dimensioned induction motor
• Drill shaft with precision ball bearing
• Robust machines with cast iron column and base plate
• Height adjustment of work table with oil collection function DMV a gear rack
• Work table with T-slots is swiveling from -45° to 45° and 360° rotatable
• Equipped with a drilling depth stop
• Equipped with zero voltage switch and emergency stop
• Interruption of the power supply when the belt box is opened and/or the chuck guard is removed
• Standard with high-quality quick-clamping drill chuck (3-16 mm)
• Includes automatic drill head
• Drilling in steel up to 32 mm
• 3-400V
• Morse cone 4 (MK 4)
• 12 snelheden
• Motor of 3 HP
• Robust machine for more intensive work

Specifications

• Voeding:3-400V
• Motorvermogen PK:3 PK
• Drilling capacity:32 mm
• Morse taper:MK 4
• Number of speeds:9
• Speeds:230-1910 rpm
• Dia. column:102 mm
• Table size:400x400 mm
• Foot size:600x380 mm
• Distance drill head to base:1270 mm
• Distance drill head to table:670 mm
• Height:1800mm
• Shaft displacement:140 mm
• Weight:210 kg

Includes

• Op pallet
