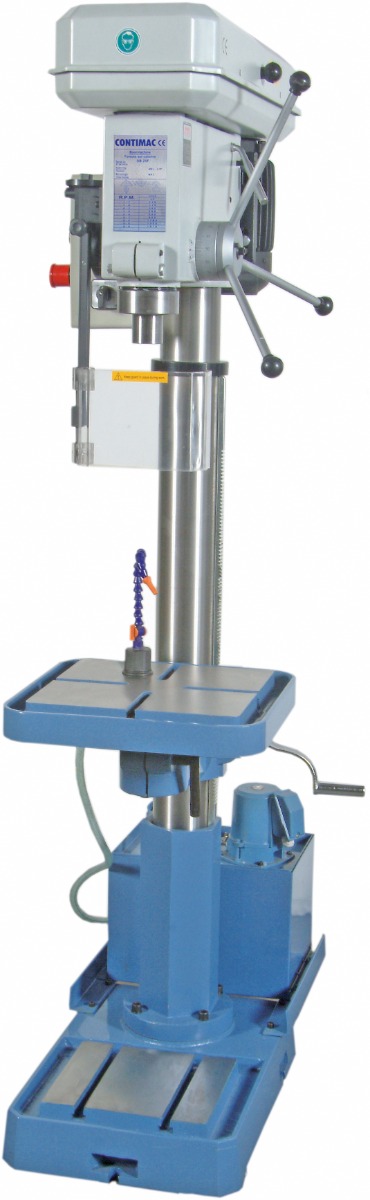

Contimac 35051 sb 45 F Column drilling machine 400 volts

Contimac 35051 sb 45 F Column drilling machine 400 volts

Heavy duty belt-driven column drill(floor model) on power current. Ideal machine for the maintenance and construction workshop.

Features

• Work table always at the same height, drilling unit is height adjustable
• This machine also features a radial function so that the distance from the drill head to column can be adjusted to the workpiece.
• Head swivels for angled operations (left: 90°/right: 30°)
• Booras met precisiekogellagering
• Voorzien van een boordiepte aanslag
• Voorzien van nulspanningsschakelaar en noodstop
• Standaard met hoogwaardige snelspanboorhouder (3-16 mm)
• Includes automatic drill head
• Full function machine with L/R loop, 2 fixed speeds and cooling pump
• Drilling in steel up to 32 mm
• 3-400V
• Morse cone 4 (MK 4)
• 12 snelheden
• Motor of 3 HP
• Robuuste machine voor het intensievere werk

Specifications

• Voeding:3-400V
• Motorvermogen PK:3 PK
• Drilling capacity:32 mm
• Morse taper:MK 4
• Number of speeds:9
• Speeds:115-1910 rpm
• Dia. column:102 mm
• Table size:400x400 mm
• Foot size:600-380 mm
• Distance drill head to base:1270 mm
• Distance drill head to table:670 mm
• Height:1800mm
• Shaft displacement:140 mm
• Gewicht:230 kg

Includes

• Op pallet
