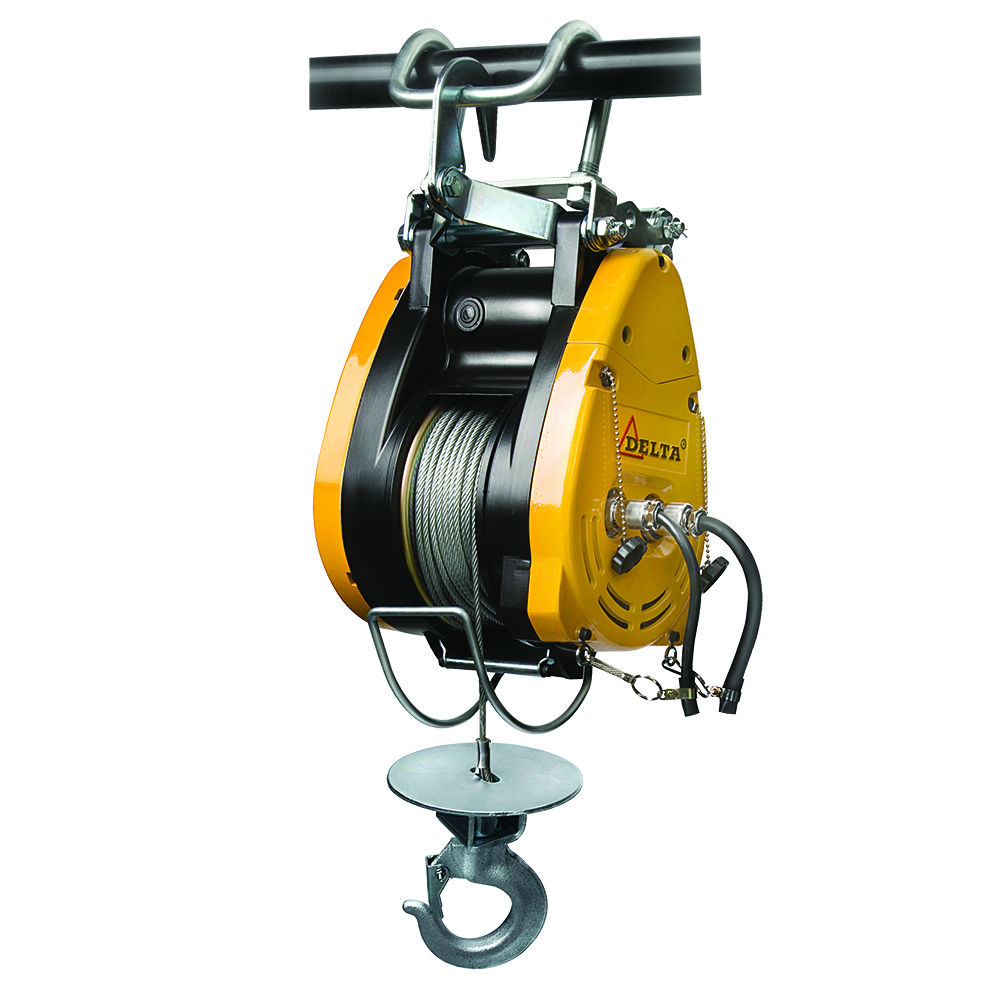

Delta CP.0.DKL.160 Electric chore winch - 0.16 tons - 28 meters

Delta CP.0.DKL.160 Electric chore winch - 0.16 tons - 28 meters

Description

• Suitable for lifting work only
• Easy to install for quick use
• Easy and safe suspension by mounting bracket
• Suitable for a wide range of industrial applications
• Permanently lubricated transmission, ensures smooth and quiet operation
• Supplied ready to use with control switch, power cable and steel cable with hook
• Complies with the Machinery Directive 2006/42/EC
• Supplied with test certificate, CE declaration of conformity and operating instructions

Technical data

• Capacity: 0.160 tons
• Lifting height: 28 m
• Max lifting speed: 23 m/min
• Steel wire: 30x5 m x Ømm
• Energy consumption: 1.2 kW
• Weight: 23 kg
• Voltage: 230V / 50-60Hz / 1Ph
• Operating temperature: -10°C - +40°C
• Control protection: IP 65
• Housing protection: IP 54
• Classification: M4/1Am (ISO/FEM)
• Limit switch: Mechanical upper limit switch. Sensor stops the motor if the wire rope is wound incorrectly (lower limit switch). Important - observe the safety windings!
• Hoisting speed: Single speed
• Switch-on time / Starts per hour: 30% / 180
• Insulation class: F
• Cable: Steel cable 1770 N/mm²
• Load type: Goods, must not be used to hoist people
• Overload protection: Without overload protection
• Brake: Mechanical brake, achieves immediate braking effect and holds the load firmly even in case of power failure
• Switch: 230V switch with emergency stop
• Power cable: ≈5 meters with plug
• Steering cable: Standard ≈10 meters
• Application: hoisting winch
