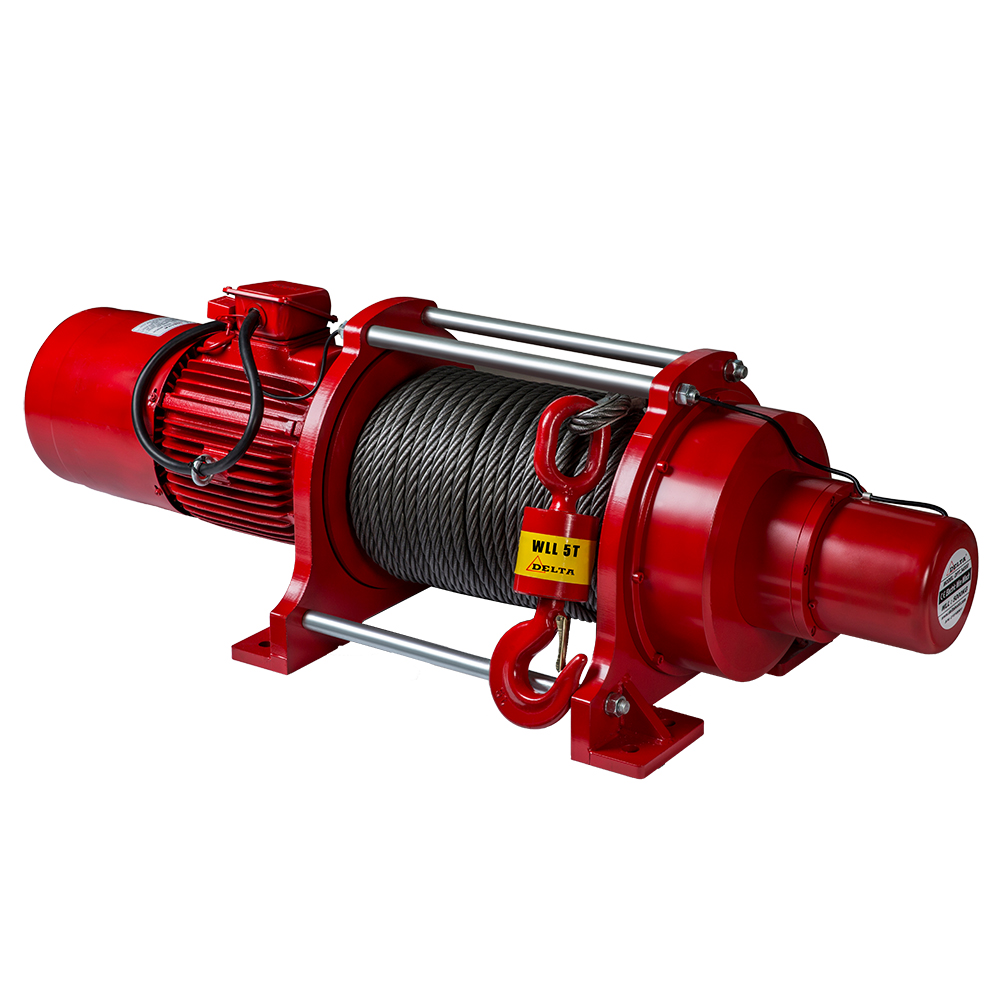

Delta CP.0.DPT.31500 Electric winch DPT - 400V - 3 tons - 68 meters

Delta CP.0.DPT.31500 Electric winch DPT - 400V - 3 tons - 68 meters

Description

• Suitable for pulling work
• Suitable for a wide range of industrial applications
• Permanently lubricated transmission, ensures smooth and quiet operation
• Supplied ready to use with control switch, power cable and steel cable with hook
• Complies with the Machinery Directive 2006/42/EC
• Supplied with test certificate, CE declaration of conformity and operating instructions

Technical data

• Voltage: 230V / 50Hz / 1Ph - 400V / 50-60Hz / 3Ph
• Operating temperature: -10°C - +40°C
• Control protection: IP 65
• Housing protection: IP 44 (from 2ton IP 54)
• Classification: M5/2m (ISO/FEM)
• Limit switch: No limit switch
• Switch-on time / Starts per hour: 40% / 240
• Insulation class: F
• Cable: Steel cable
• Load type: Goods, must not be used to hoist people
• Overload protection: Without overload protection, from 1ton optional
• Brake: Mechanical brake, achieves immediate braking effect and holds the load firmly even in case of power failure
• Switch: 230/400V switch with emergency stop
• Power cable: ≈1 meter with plug
• Steering cable: Standard ≈ 2 meters
• Application: pulling winch
• Pull speed: Single speed
• Lifting height: 68 m
• Capacity: 3 tons
