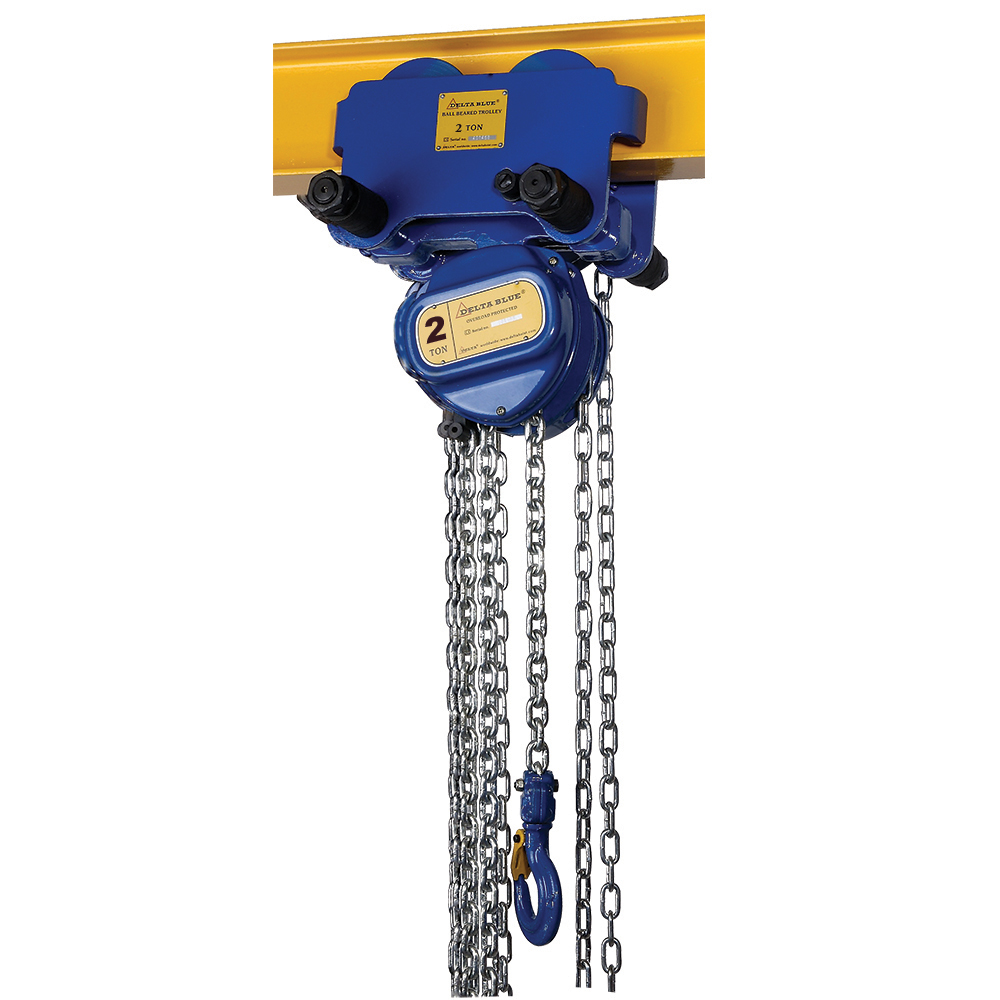

Delta DC.0.09102003 Hand chain hoist with chain trolley with overload protection - 2 tons - 3 meters

Delta DC.0.09102003 Hand chain hoist with chain trolley - with overload safety device

Description

• Hand chain hoist mounted on a trolley with low build height
• Suitable for most I- and H-beams
• Breakdown protection brackets serve as fall, break and impact protection. Additionally equipped with tilt protection
• Permanently lubricated, ball-bearing wheels ensure smooth movement
• Maintenance-friendly design. Brake and transmission are easily accessible
• The transmission is supported by bearings
• Dual housing provides protection against dust and water
• Complies with the Machinery Directive 2006/42/EC
• Supplied with test certificate, CE declaration of conformity and operating instructions

Technical data

• Operating temperature: -10°C - +60°C
• Load type: goods, must not be used to hoist people
• Overload protection: standard with slip clutch overload protection
• Brake: automatic safety brake with double pawls / steel brake disc with sintered brake pads for longer service life
• ATEX zone: not suitable
• Hooks: forged steel hooks with cast flap
• Hand chain: galvanized hand chain
• Load chain: galvanized load chain according to EN 818-7-T
• Lifting height: 3 m
• Capacity: 2 tons
