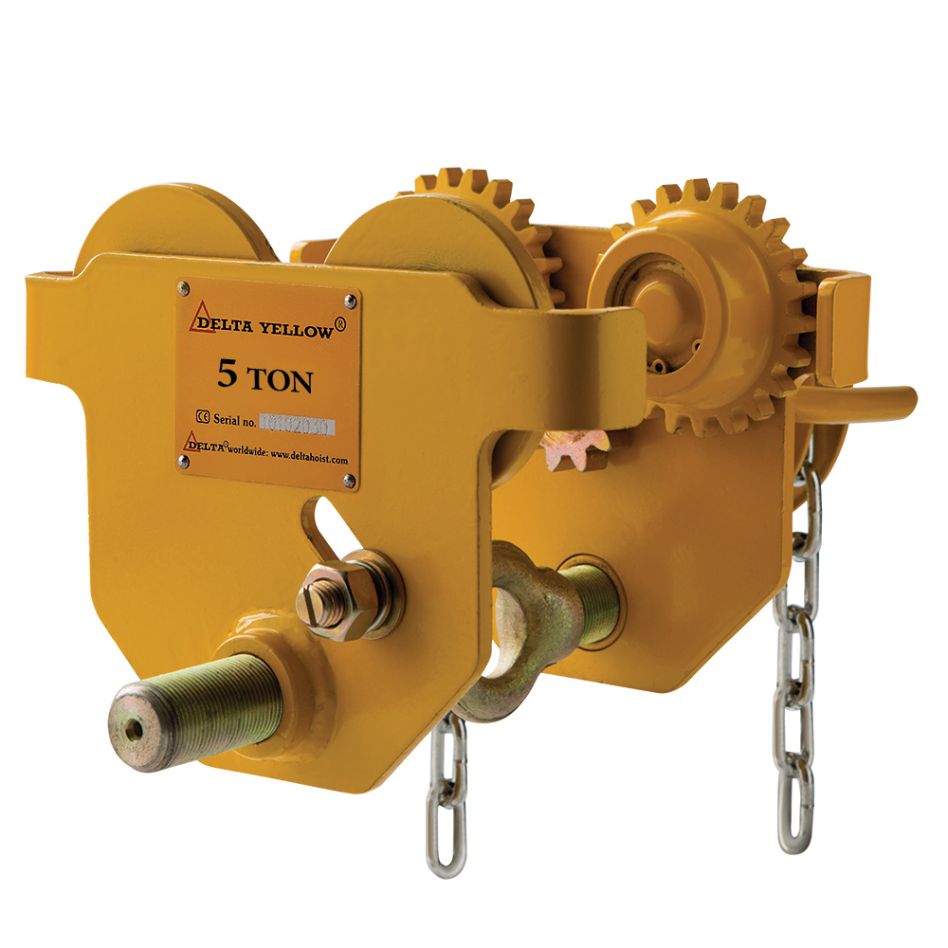

Delta DY.0.037005000 Chain trolley 5 tons
Description
- Individually adjustable through the rotatable threaded shaft
- Breakdown protection brackets serve as fall, break and impact protection. Additionally equipped with tilt protection
- Permanently lubricated, ball-bearing wheels ensure smooth movement
- Suitable for most I- and H-beams
- Standard with hand chain for 3 meters working height
- Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions
Technical data
- Capacity: 5 tons
- Net weight: 46.1 kg
- Suitable beam width: 90-305 mm
- Min. radius: 1 m
- Test load: 6.25 tons
- Wheel diameter: 120 mm
More Information
| EAN | 8719482288326 |
|---|---|
| Order Number | DY.0.037005000 |
| Manufacturer | Delta |
