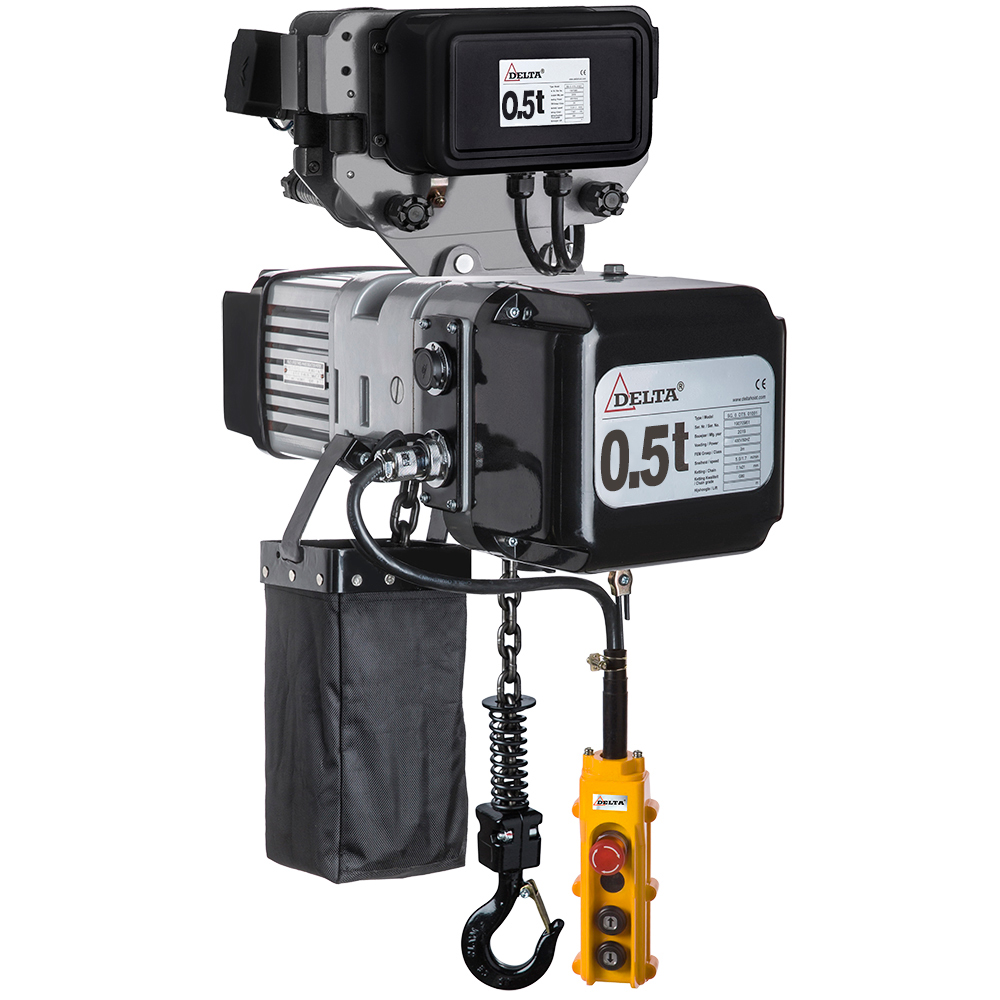

Delta SG.0.DTD.00502.03 Electric chain hoist SG.DTS - 0.5 tons - 3 meters - 400V - with electric trolley

Delta SG.0.DTD.00502.03 Electric chain hoist SG.DTS - 0.5 tons - 3 meters - 400V - with electric trolley

Description

• Electric chain hoist mounted on a (electric) trolley with a low build height
• Balanced support wheels allow smooth movement over the beam
• Breakdown protection brackets serve as fall, break and impact protection. Additionally equipped with tilt protection
• Permanently lubricated, ball-bearing wheels ensure smooth movement
• Suitable for most I- and H-beams
• SG.0.DTS.00502.03 Electric chain hoist

Technical data

• Lifting height: 3 m
• Capacity: 0.5 tons
• Travel speed: 20/6.7 m/min
• Energy consumption trolley: 0.2/0.07 kW
• Tray width: 74-300 mm
• Net weight: 84 kg
• Min. height (H): 480 mm
