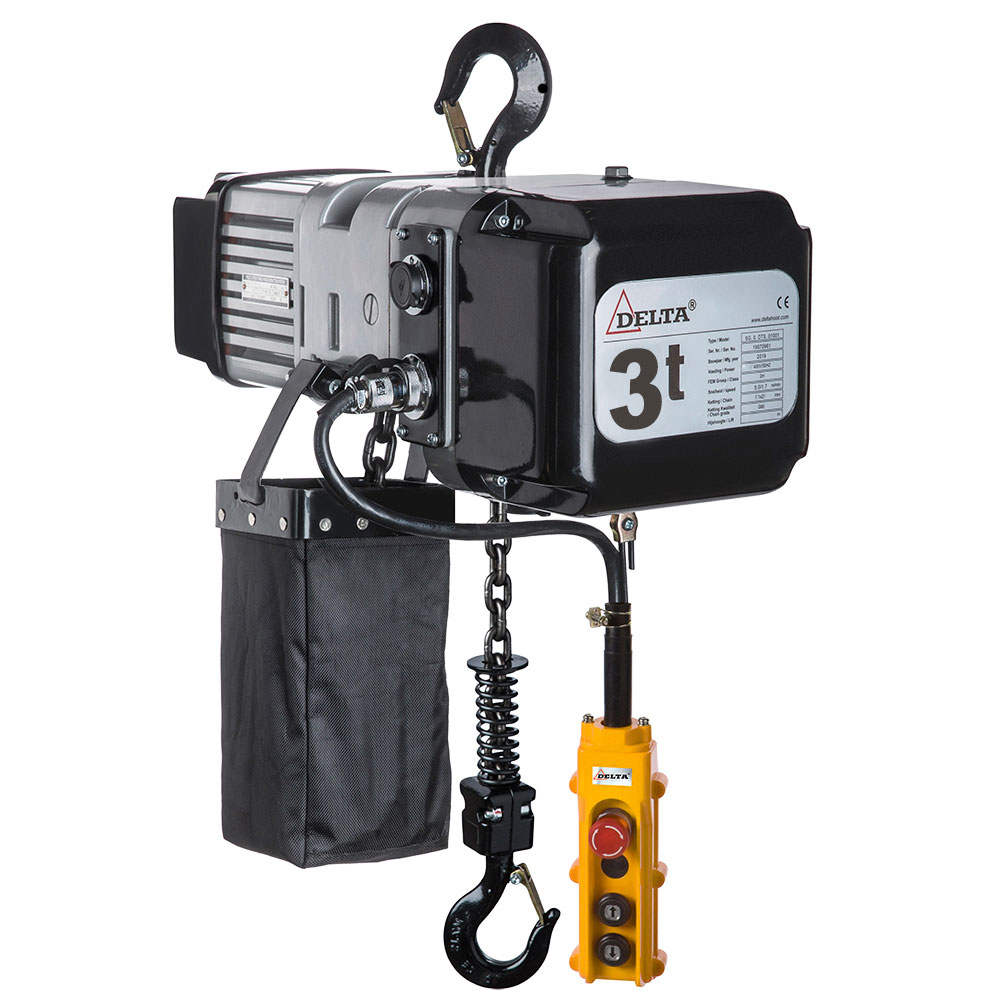

Delta SG.0.DTS.03001.10 Electric chain hoist - 3 tons - 10 meters - 400V - 1 part

Delta SG.0.DTS.03001.10 Electric chain hoist - 3 tons - 10 meters - 400V - 1 part

Description

• Rugged aluminum housing
• Suitable for a wide range of industrial applications
• Swivel welding hook with safety valve
• Easy to disassemble for maintenance purposes
• With SIEMENS operating system
• Permanently lubricated transmission, ensures smooth and quiet operation
• Supplied with control switch, power cable and chain box
• Complies with the Machinery Directive 2006/42/EC
• Supplied with test certificate, CE declaration of conformity and operating instructions

Technical data

• Lifting height: 10 m
• Capacity: 3 tons
• Lifting speed: 6 m/min
• Lifting chain: 11.2 x 34 Øxmm
• Parts: 1
• Energy consumption: 3 kW
• Net weight: 94 kg
• Extra weight: 2.7 kg/m
• Voltage: 400-440V / 50-60Hz / 3Ph
• Lifting speed 2: Single or double speed
• Lifting chain 2: Load chain according to EN 818-7-DT
• Steering cable: Standard ≈3 meters
• Power cable: ≈1 meter without plug
• Housing protection: IP 55
• Control protection: IP 65
• Classification: M5/2m (ISO/FEM)
• Switch-on time / Starts per hour: 40% / 240
• Insulation class: F
• Operating temperature: -10°C - +40°C
• Load type: Goods, must not be used to hoist people
• Switch: 24V switch with emergency stop
• Overload protection: externally adjustable slipping clutch
• Brake: Electromagnetic spring-loaded brake, holds the load firmly even in case of power failure
• Limit switch: Electro-mechanical upper and lower limit switch
• Thermal protection: Protected by heat sensor
