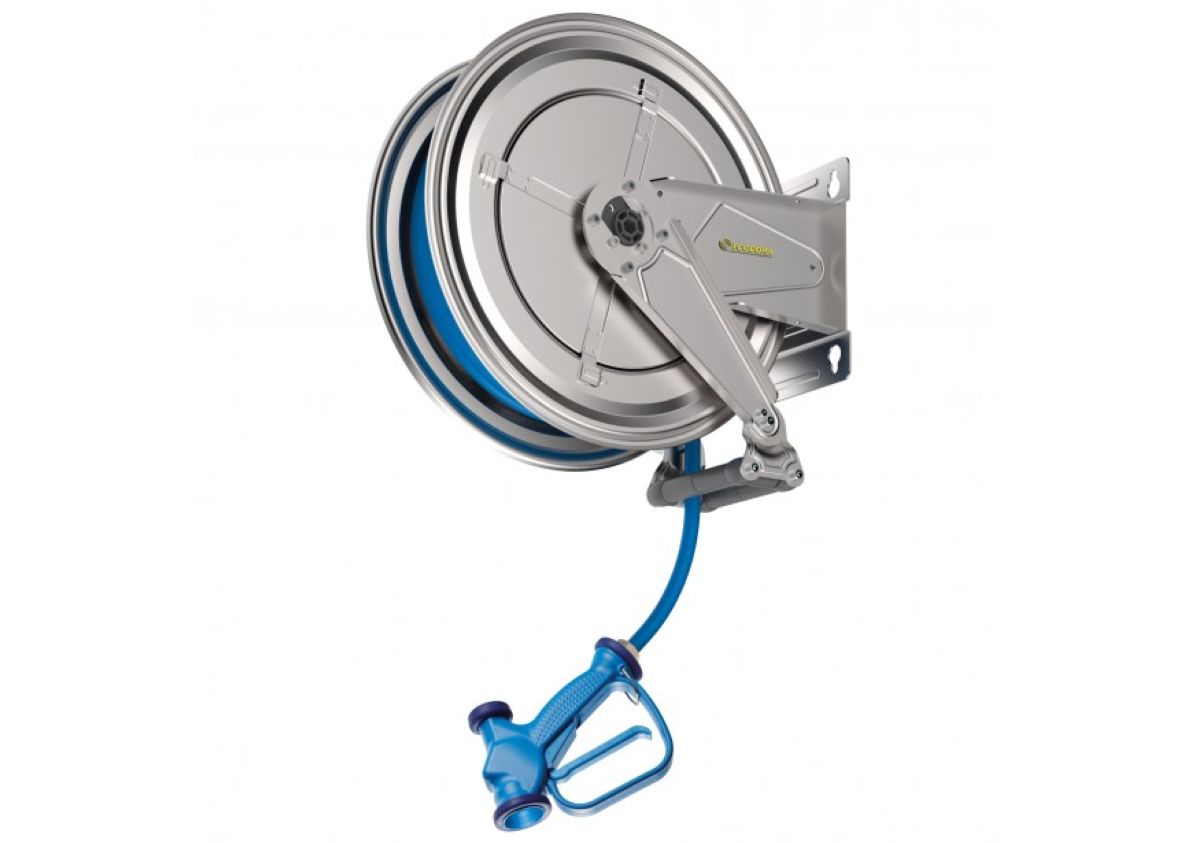

Ecodora 567000083 Hose reel 15m (hygienic liquid) - 10 bar - hose 1/2" - (0E70505)

Ecodora 567000083 Hose reel 15m (hygienic liquid) - 10 bar - hose 1/2" - (0E70505)

Special features

• Hose reel in stainless steel AISI 304 housing with 15m Atoxic hygiene hose
• ECODORA, Italian manufacturer of the highest European quality
• Features a built-in return spring to automatically roll up after each use
• Fixed wall mounting bracket
• Significantly increases safety in the workplace by eliminating hoses lying around on the shop floor
• Housing in stainless steel AISI304
• Multipositionable roll-off arm, quick and easy mounting to walls, ceilings, support posts and totems
• Wide hose guide with vertical and horizontal guides designed to reduce hose wear and tear
• Removable locking position for easy maintenance and free sliding use
• German top quality spring (Eberle) resistant to more than 20,000 work cycles
• Adjustable spring return force
• Rotatable stainless steel inlet fitting designed to reduce pressure losses
• Self-lubricating Viton seals
• Central pivot made of stainless steel
• Conforms to Atex II 2 GD
• Fixed wall bracket with mounting template
• Atoxic hygiene hose: especially for in the food sector

Technical data

• Application: hygiene
• Housing: stainless steel AISI 304
• Working pressure: 10 bar
• Length: 15 m
• Hose diameter: 1/2"
• Input: 3/8"
• Output: 3/8"
