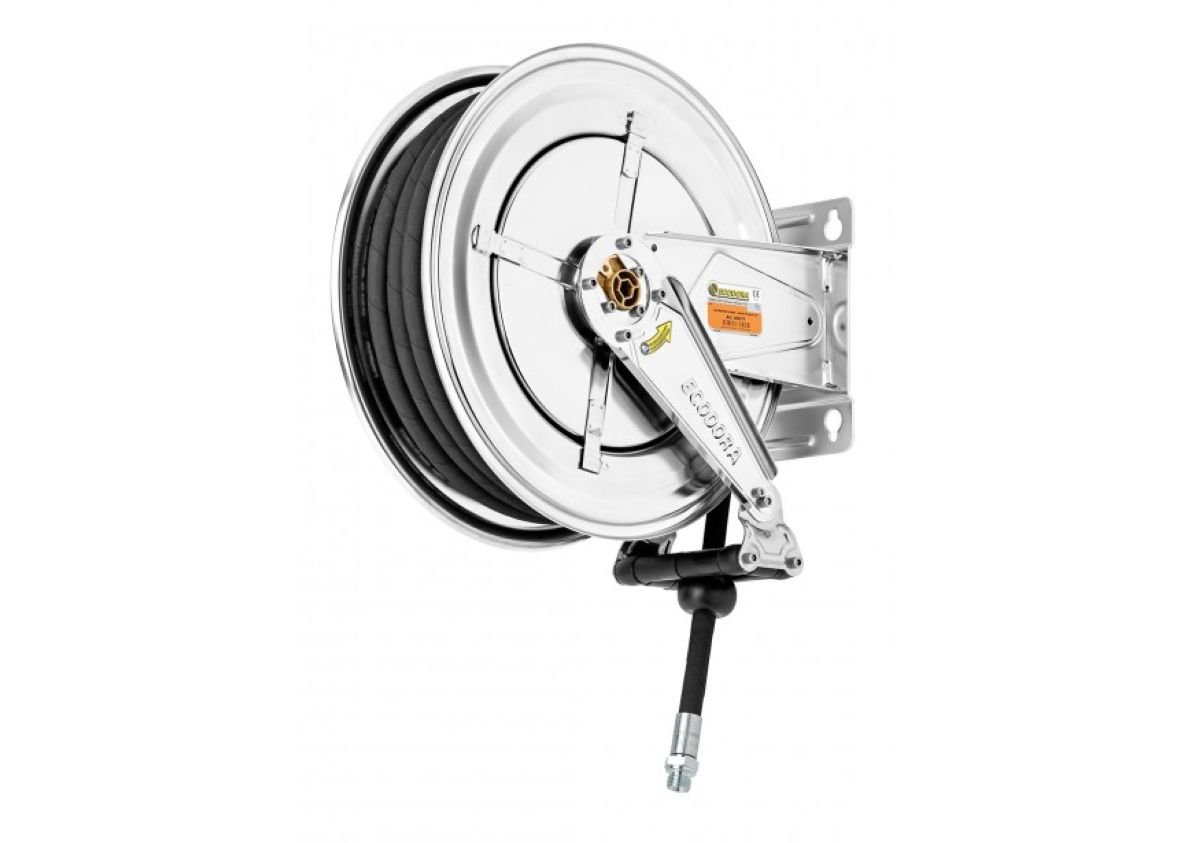

Ecodora 567000100 Hose reel 18m (water 100°C) - 200 bar - hose 3/8" - (432/32)

Ecodora 567000100 Hose reel 18m (water 100°C) - 200 bar - hose 3/8" - (432/32)

Special features

• ECODORA, Italian manufacturer of the highest European quality
• Features a built-in return spring to automatically roll up after each use
• Equipped with a 180° rotatable wall mounting bracket
• Significantly increases safety in the workplace by eliminating hoses lying around on the shop floor
• Housing in stainless steel AISI304
• Multipositionable roll-off arm, quick and easy mounting to walls, ceilings, support posts and totems
• Wide hose guide with vertical and horizontal guides designed to reduce hose wear and tear
• Removable locking position for easy maintenance and free sliding use
• German top quality spring (Eberle) resistant to more than 20,000 work cycles
• Adjustable spring return force
• Anti-static EPDM hose with stainless steel fittings
• Rotatable stainless steel inlet fitting designed to reduce pressure losses
• Self-lubricating Viton seals
• Central pivot made of stainless steel
• In accordance with Atex 94/9 IIB 2 GD c T4 T135 °C X
• Fixed wall bracket with mounting template
• Supplied with suction arm of +- 0.6m

Technical data

• Application: air/water
• Housing: stainless steel AISI 304
• Working pressure: 200 bar
• Max. temperature: 100 °C
• Length: 18 m
• Hose diameter: 3/8"
• Input: F 3/8
• Output: F 3/8
