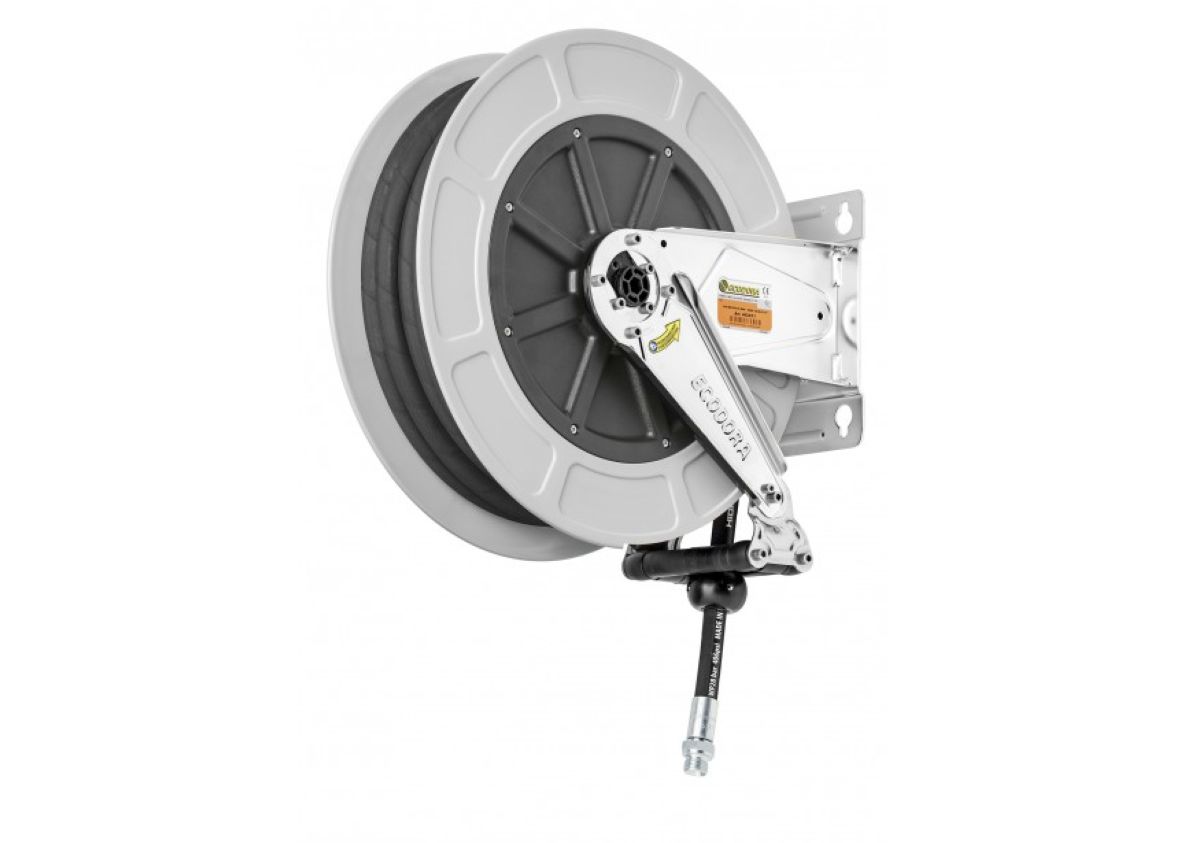

Ecodora 567000105 Hose reel 18m (air/water 100°C) - 200 bar - hose 3/8" - (4432/32)

Ecodora 567000105 Hose reel 18m (air/water 100°C) - 200 bar - hose 3/8" - (4432/32)

Special features

• Hose reel in ABS housing, bracket in stainless steel AISI 304 with 18m rubber compressed air hose (Ø3/8")
• ECODORA, Italian manufacturer of the highest European quality
• Features a built-in return spring to automatically roll up after each use
• Fixed wall mounting bracket
• Significantly increases safety in the workplace by eliminating hoses lying around on the shop floor
• Unwind system with automatic stop
• Multi-positionable roll-off arm, quick and easy mounting on walls, ceilings, support columns and totems.
• Wide hose guide, with vertical and horizontal guides. Designed to reduce hose wear
• Removable locking position for easy maintenance and free sliding use
• Top German quality spring (Erberle) manufactured for more than 20,000 work cycles
• Adjustable spring return force
• Synthetic rubber hose with galvanized steel fittings
• Rotating brass inlet fitting designed to reduce pressure losses
• Viton seals
• Central pivot made of AISI 304 stainless steel
• In accordance with Atex 94/9 II 3 GD c X
• Fixed wall bracket and mounting template
• Supplied with 0.6m suction arm

Technical data

• Application: air/water
• Housing: stainless steel AISI 304
• Working pressure: 200 bar
• Max. temperature: 100 °C
• Length: 18 m
• Hose diameter: 3/8"
• Input: F 3/8" G "
• Output: M 3/8" G "
