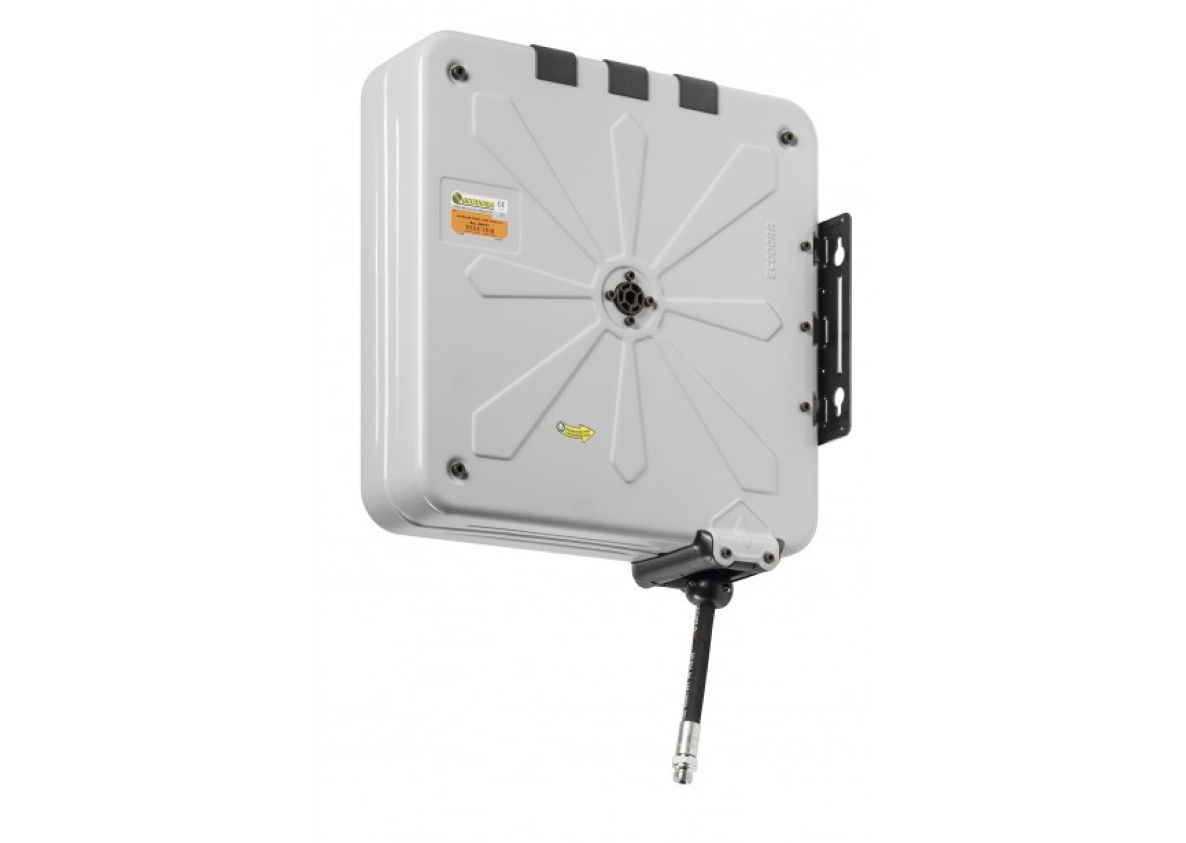

Ecodora 567000110 Hose reel 18m (grease) - 400 bar - hose 1/4" - (4440/52)

Ecodora 567000110 Hose reel 18m (grease) - 400 bar - hose 1/4" - (4440/52)

Special features

• Hose reel in metal housing with 18m rubber compressed air hose (Ø1/4")
• ECODORA, Italian manufacture of the highest European quality
• Features a built-in return spring to automatically roll up after each use
• Fixed wall mounting bracket
• Significantly increases safety in the workplace by eliminating hoses lying around on the shop floor
• Strong metal housing with rounded corners
• Unwind system with automatic stop
• Wide hose guide with vertical and horizontal guides designed to reduce hose wear and tear
• Removable suspension stand for easy maintenance and free sliding use
• Top German quality spring (Erberle) manufactured for more than 20,000 work cycles
• Adjustable spring return force
• Lacquered metal housing and ABS drum (ABS is an impact-resistant material, durable and reliable)
• Synthetic rubber hose with galvanized steel fittings
• Rotating brass inlet fitting designed to reduce pressure losses
• Viton seals
• Central pivot made of galvanized steel
• Suitable for floor, wall and ceiling mounting
• In accordance with Atex 94/9 II 3 GD c X
• Fixed wall bracket with mounting template
• Adjustable hose stopper
• Supplied with 0.6m suction arm

Technical data

• Application: grease
• Housing: steel
• Working pressure: 400 bar
• Length: 18 m
• Hose diameter: 1/4"
• Input: F 3/8" G "
• Output: M 1/2" G "
