Ecodora 567000117 Wall Reel 25M (Air/Water 100°C) - 200 Bar - Hose 3/8"

Ecodora 567000117 Wall Reel 25M (Air/Water 100°C) - 200 Bar - Hose 3/8"

Hose reel in stainless steel AISI 304 housing with 25m rubber compressed air hose (Ø3/8")

Special Features

• ECODORA, Italian manufacturer of the highest European quality
• Equipped with built-in return spring to automatically roll up after each use
• Fixed wall mounting bracket
• Significantly increases safety in the workshop due to the absence of hoses lying around on the work floor
• Housing in stainless steel AISI304
• Multipositionable unwinding arm, quick and easy mounting to walls, ceilings, support posts and totems
• Wide hose guide with vertical and horizontal guides designed to reduce hose wear and tear
• Removable locking position for easy maintenance and free sliding use
• German top quality spring (Eberle) resistant to over 20,000 work cycles
• Adjustable spring return force
• Anti-static EPDM hose with stainless steel fittings
• Rotatable stainless steel inlet fitting designed to reduce pressure losses
• Self-lubricating Viton seals
• Central pivot made of stainless steel
• Conforms to Atex 94/9 IIB 2 GD c T4 T135 °C X

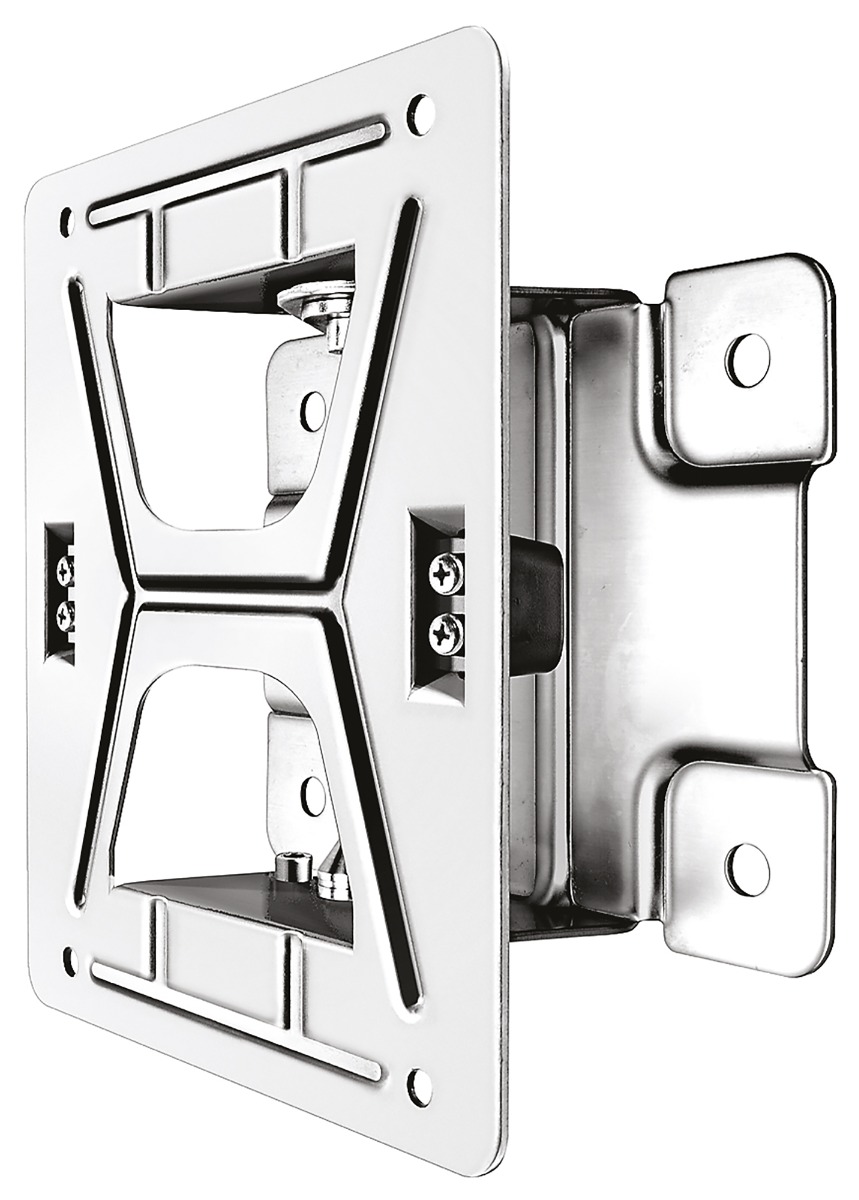

• Fixed wall bracket with mounting plate
• Delivered with suction arm of +- 0.6m

Technical data

• Application:air/water
• Housing: stainless steel AISI 304
• Working pressure:200 bar
• Max. temperature:100 °C
• Length:25 m
• Dia. hose:3/8 "
• Input:F 1/2" G
• Output:F 3/8' G "

Scope of delivery

• In box
