Ecodora 567000119 Hose reel 15m (air/water 70°C) - 20 bar - hose 3/4" - (540/11)

Ecodora 567000119 Hose reel 15m (air/water 70°C) - 20 bar - hose 3/4" - (540/11)

Special features

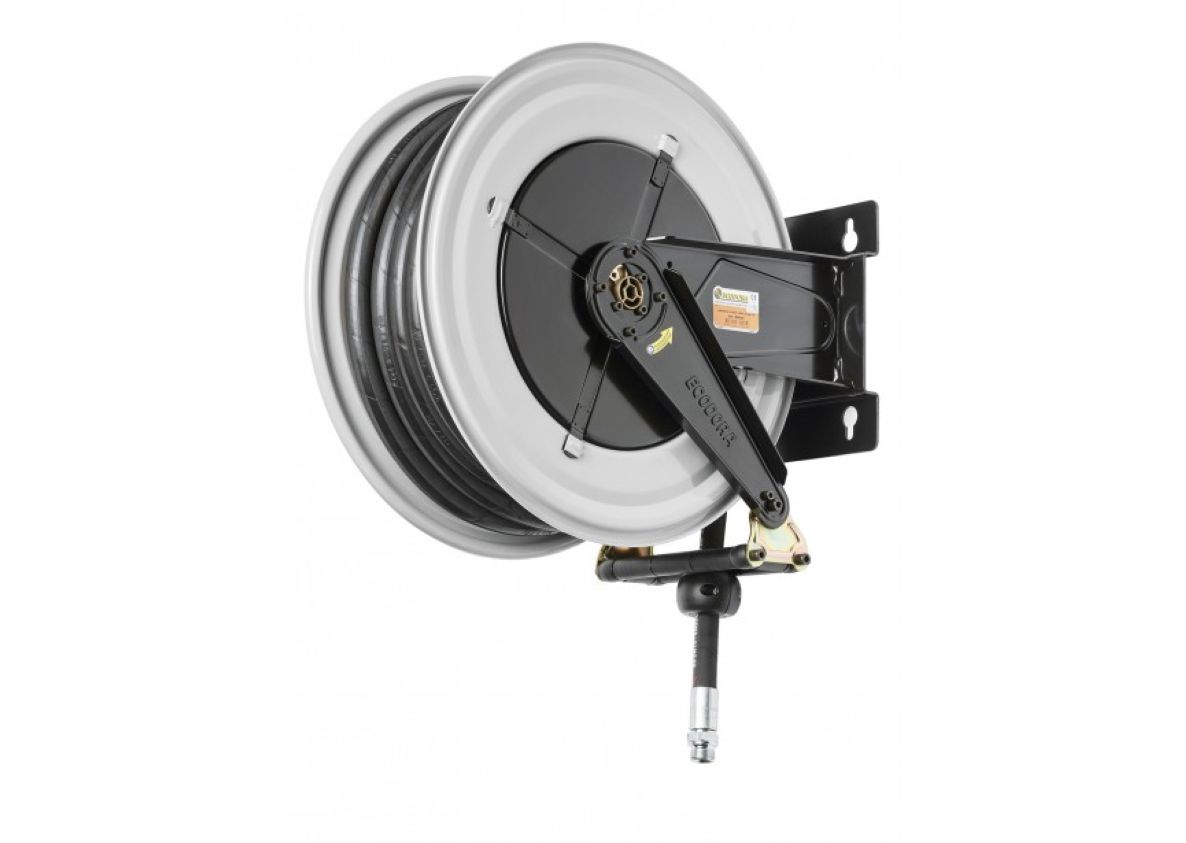

• Hose reel in metal housing with 15m rubber compressed air hose (Ø3/4")
• ECODORA, Italian manufacture of the highest European quality
• Features a built-in return spring to automatically roll up after each use
• Equipped with a fixed wall mounting bracket
• Significantly increases safety in the workplace by eliminating hoses lying around on the shop floor
• Unwind system with automatic stop
• Multipositionable unwinding arm
• Wide hose guide with vertical and horizontal guides designed to reduce hose wear and tear
• Removable locking position for easy maintenance and free sliding use
• Top German quality spring (Erberle) manufactured for more than 20,000 work cycles
• Adjustable spring return force
• Lacquered metal housing
• Synthetic rubber hose with galvanized steel fittings
• Rotatable brass inlet fitting designed to reduce pressure losses
• Industrial components: self-lubricating Viton
• Central pivot made of galvanized steel
• In accordance with Atex 94/9 II 3 GD c X
• Fixed wall bracket with mounting template
• Supplied with 0.6m suction arm

Technical data

• Application: air/water
• Housing: steel
• Working pressure: 20 bar
• Max. temperature: 70 °C
• Length: 15 m
• Hose diameter: 3/4"
• Input: F 1 G "
• Output: M 3/4" G "
