Ecor-Pro DH3500 DryFan Adsorption Dehumidifier 45l black/yellow

Ecor-Pro DH3500 DryFan Adsorption Dehumidifier 45l black/yellow

Industrial dehumidifier DH3500, steel construction with a robust epoxy coating. Very compact for a capacity of 45 liters. Dehumidifies 24 hours a day and works even at temperatures down to -20 °C/-4 °F. Can be used at temperatures up to 40 °C/104 °F.

Special features

• Very compact - Smallest 45-liter dehumidifier on the market.

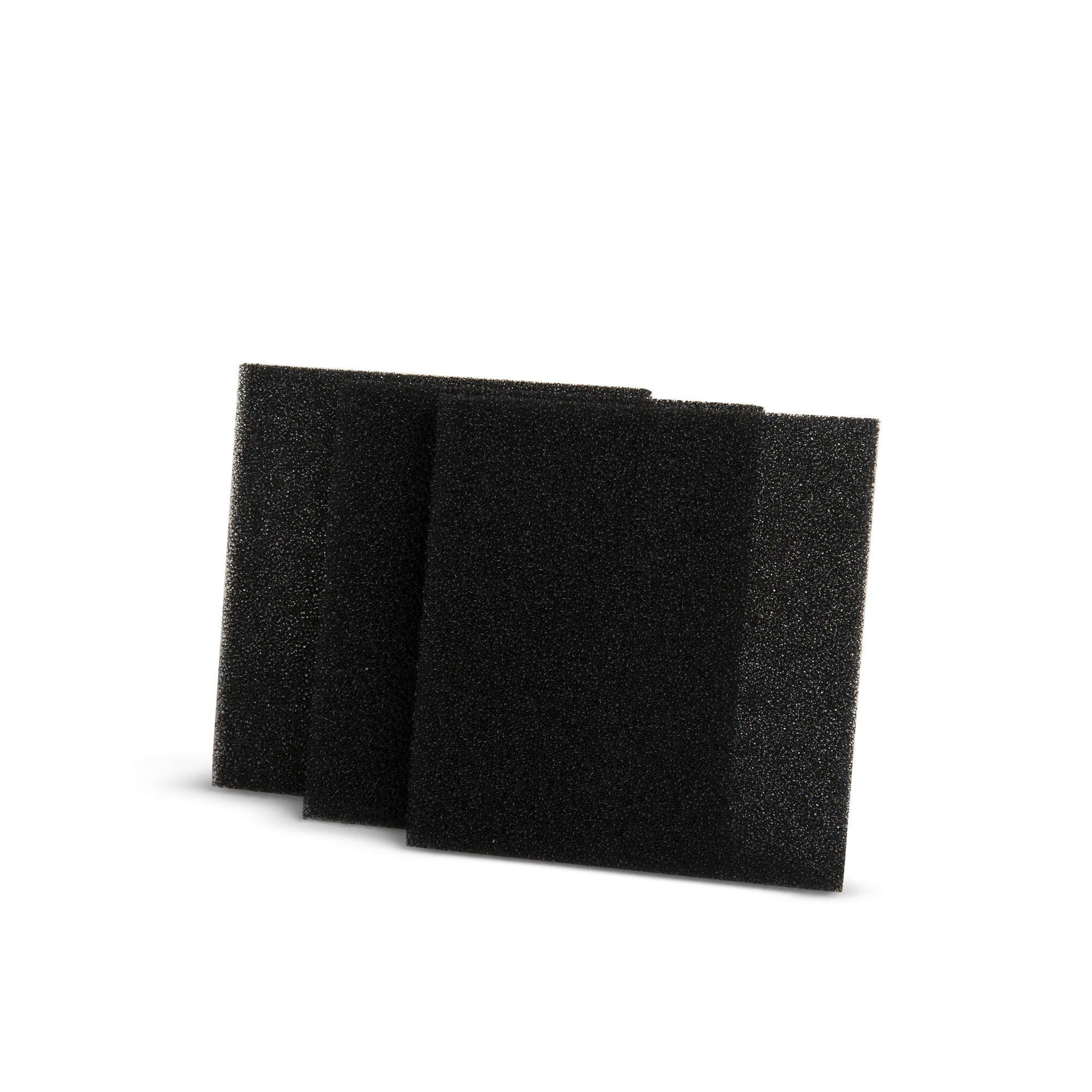

• Dust filter - Reticulated dust filter in metal frame; easy to shake clean or replace. Prevents dust from entering unit and reducing performance.
• Easy maintenance - Removable cover for quick access to cords and wear parts; replace cord sets in about 20 minutes; extends the life of the DH3500.
• Four feet - Anti-scratch plastic feet for stability.
• Carrying handle - Easily carried by one person; removable handles protect duct flanges during transport.

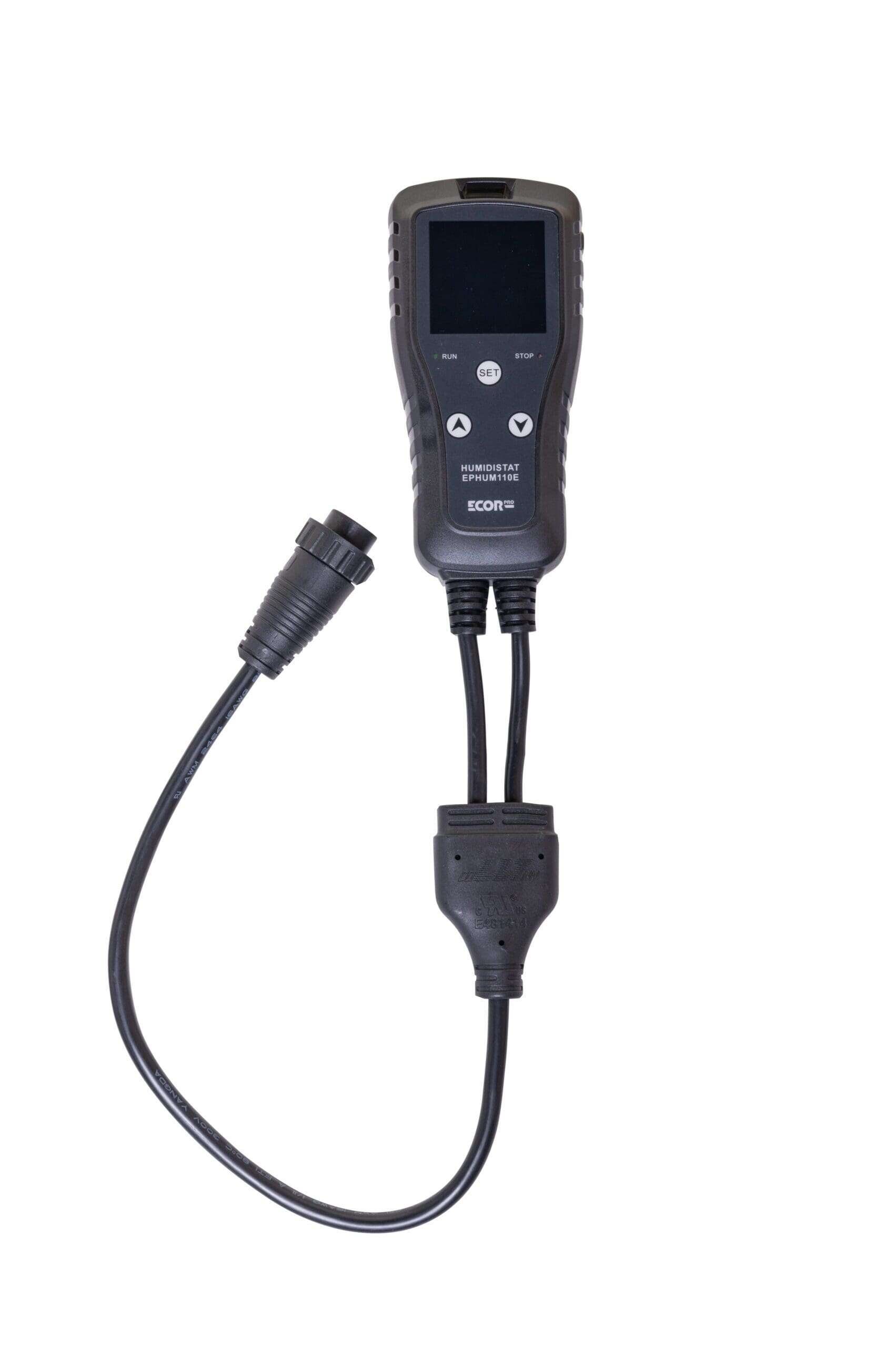

• Humidistat connector - Internal humidistat can be easily added via military connector (EPHUM220) for automatic on/off.
• Suitable for all climates - Designed for continuous operation under various conditions.
• Ducting capability - All air ducts equipped with flanges for connection of 125 mm / 5″ rigid or flexible ducts.
• Moisture removal - Two internal fans remove moisture; works even at lower temperatures; 15% of process air is used for moisture removal; slight negative pressure.
• "Four Hole System" - Two inlets and two outlets.
• Rain Filter Housing - Removable filter housing for specific applications; recently added on DH35XX models.
• Power Supply Voltage - 220V, 50Hz.
• Automatic Reset - Restarts automatically after power interruption; ideal for locations with unstable or "dirty" power.
• All-metal construction - Metal with epoxy paint, heat-treated for extra strength inside and out; designed for long-term durability.
• 4 m / 12′ power cord - No extension cords required, useful for crawl spaces, attics or industrial applications.
• Maximum water discharge - 45 liters.
• Operating temperature - -20°C to 40°C, suitable for continuous dry use.
• Air displacement - 380 m³/hr (380 m³/hr process air, 75 m³/hr exhaust air).
• Highly efficient and quiet fan operation - Noise level: 56 dB (process air).
• Air dimensions - Process air in 125 mm, process air out 125 mm, exhaust air 80 mm.
• Low energy consumption - High moisture removal capacity with minimum energy consumption.

Technical data.

• Weight: 24.4 kg (45.19 lbs)
• Dimensions (L × W × H): 73 × 41 × 47 cm (24.82" x 13.86" x 13.58")
• Technology: Desiccant (desiccant)
• Maximum extraction: 45 L (95 pt)
• Power / Plug / Cord length: 1500 W, 220 V, 50 Hz, 6.5 A / Yes BS/EU / 5 m cord
• Color / Material: Yellow/Black / Mild steel epoxy coating
• Duct diameters: 80 mm (3.0") - 125 mm (5")
• Suitable for swimming pool: No
• Indoor humidity controller / Optional humidity controller: No / Yes
• Carrying handle / Water tank / Cord length: Yes / No / 5 m
• Fan speeds / Noise level: 1 / 58 dB
• Operating temperature: -20 °C to +40 °C
• Restart in case of power failure / Works with DC-AC inverter: Yes / Yes
• Air flow: 400 m³/h (process) / 125 m³/h (exhaust)
• Water tank: No
• Material: Steel with epoxy coating
• Certification / Testing: CE
