Eibenstock 10.094.53 Diamond drill set DBE 250 R 2500 W – drilling up to 250 mm

Eibenstock 10.094.53 Diamond drill set DBE 250 R 2500 W – drilling up to 250 mm

Professional 2-speed diamond drill set from the new generation of machines for wet drilling in concrete.

Gear housing lubricated with oil, combi-shaft and integrated water supply, electronically adjustable switch, thermal and overvoltage protection, mechanical slip clutch and PRCD switch and self-switching carbon brushes.

Including drill stand, excluding diamond drill bit.

Features

• Wet drilling in reinforced concrete, natural stone and asphalt
• Electrical installation, sanitary and heating installations, civil engineering, industrialised building
• Electronic - soft start, temperature control and overcurrent cut-off, optical overload indication, constant speed
• Cutt-off carbon brushes - for the protection of the motor
• PUR-construction site cable - strong, for heavy duty use
• Mechanical oil bath gearbox - for optimal lubrication in all working positions, due to the newly developed oil pump
• Mechanical safety clutch
• Shaft seals replaceable from the outside - easy service
• Integrated levels on the carriage, scale and hole center indicator on the drill rig – exact drilling
• Quick-change plate - easy assembly to the drill rig
• Column of the rig can be adjusted to 45°
• Feed lever change without any tools - easy change of the working site

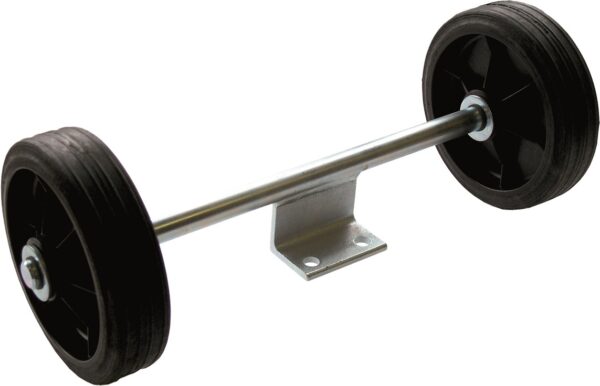

• Retrofitable wheel axle (accessory) - easy transport

Technical data

• Power input: 2500 W
• Rated voltage: 230 V
• Rated speed: 360 / 850 rpm
• No-load speed: 500 / 1000 rpm
• Spindle connection: 1¼" male
• Drilling diameter (wet): 52-250 mm
• Pillar length: 995 mm
• Useful stroke: 600 mm
• Weight: 26 kg

Standard delivery

Including

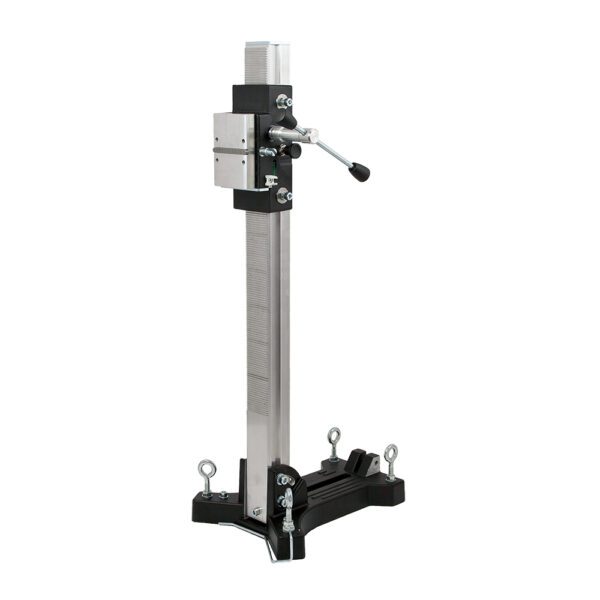

• Drill stand

Excluding

• Diamond drill bits
