Eibenstock 10.094.54 Diamond drill set DBE 352 3000 W – drills up to 352 mm

Eibenstock 10.094.54 Diamond drill set DBE 352 3000 W – drills up to 352 mm

Professional 3-speed diamond drill bit set with full aluminum housing and oil bath lubricated gear housing. Generous overcapacity for wet drilling in concrete.

With integrated water supply, thermal and overvoltage protection, mechanical slip clutch, PRCD switch and a service LED indicator for replacing the carbon brushes.
Including drill stand, excluding diamond drill bit.

Features

• Wet drilling in reinforced concrete, natural stone and asphalt
• Civil engineering
• Powerful 3,000 W motor with high power reserves and a long lifetime
• Electronic - soft start, temperature control and overcurrent cut-off, optical overload indication, constant speed
• service-LED - lets you know when the carbon brushes need changing (works for approx. 10 working hoursbefore shutdown)
• 3 speed oil bath gearbox - for optimal lubrication in all working positions, due to the newly developed oipump
• Mechanical safety clutch
• PUR-construction site cable - strong, for heavy duty use
• Universal connection - fasten the motor to the drill rig without any tools
• Integrated spirit level on the machine as well as an additional handle and hole centre indicator allow for exact drilling
• Column of the rig can be adjusted to 45°
• Compact combination base - fixing with anchor or vacuum (vacuum set necessary)
• Feed lever change without any tools - easy change of the working site
• Removeable wheel axle (accessory) - easy transport

Technical data

• Power input: 3000 W
• Rated voltage: 230 V
• Rated speed: 230 / 500 / 1030 rpm
• Spindle connection: 1¼" male
• Drilling diameter (wet): max. 42-352 mm
• Pillar length: 995 mm
• Useful stroke: 620 mm
• Weight: 35 kg

Standard delivery

Including

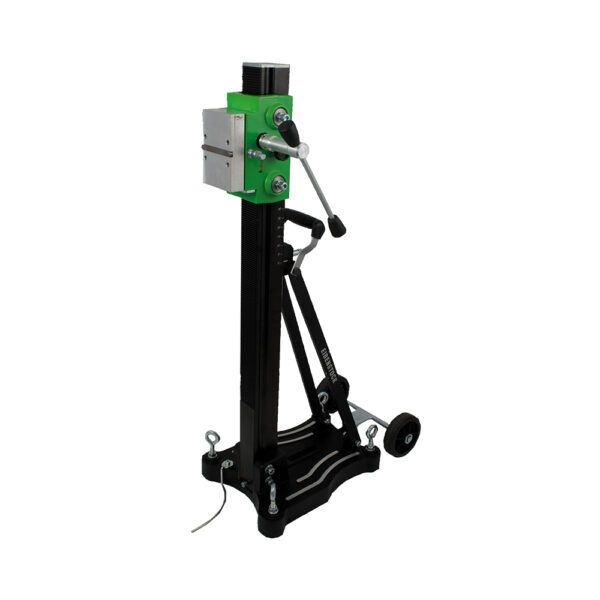

• Drill stand

Excluding

• Diamond drill bits
