Eibenstock 10.094.77 Diamond drill set PLE 450 B 3300 W – up to 450 mm in concrete

Eibenstock 10.094.77 Diamond drill set PLE 450 B 3300 W – up to 450 mm in concrete

Professional diamond drill set with 3 gears from the new generation of machines, for clean wet drilling in concrete.

Oil bath lubricated gear housing, combi shaft and integrated water supply, electronically adjustable switch, thermal and overvoltage protection, mechanical slip clutch, PRCD switch and self-shutting carbon brushes.

Including drill stand, excluding diamond drill.

Features

• Wet drilling in reinforced concrete, natural stone and asphalt
• Drilling operations, civil engineering
• Powerful 3300 W heavy-duty motor with high power reserves and a long lifetime
• Full aluminium housing – durable and resistant
• Electronic – soft start, over current cut-off, overload indication
• 3-speed oil bath gearbox – for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
• Mechanical safety clutch
• PUR-construction site cable – strong for heavy duty use
• Universal tool holder – fasten the motor to the drill rig without any tools
• Integrated levels on the carriage and scale on the drill rig – exact drilling
• Column swivel in three levels (75°/60°/45°)
• Steel column – robust, stable, buckling resistant
• Tooth rail separately exchangeable – easy to maintain
• Compact base with cut-out for quick action bracing unit
• Feed lever change without any tools – easy change of the working site
• Removeable wheel axle – easy transport

Technical data

• Spindle connection: 1¼ male
• Weight: 35.8 kg
• Rated voltage: 230 V
• Rated speed: 180 / 400 / 780 rpm
• No-load speed: 300 / 650 / 1300 rpm
• Power input: 3300 W
• Pillar length: 960 mm
• Drilling diameter: 71-450 mm

Standard delivery

Including

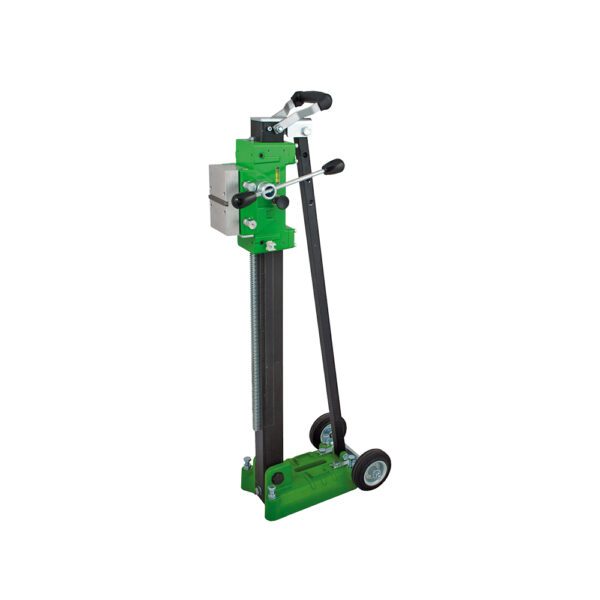

• Drill stand

Excluding

• Diamond drills
