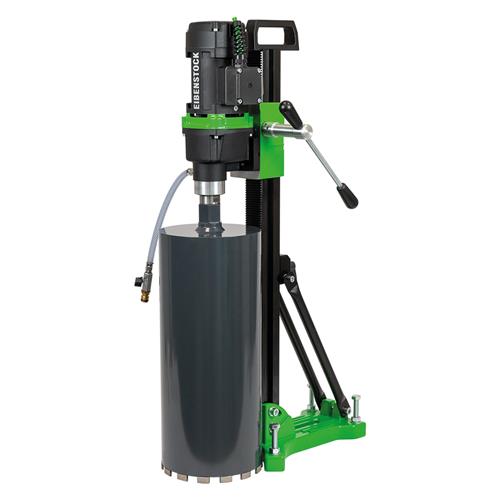

Eibenstock 10.094.63 Diamond drilling set PL 200

Eibenstock 10.094.63 PL 200 Diamond drill set 12-202 mm 1.1/4" 2600 Watt

Special features

• Switch with overcurrent protection - motor overload protection
• Self-deactivating carbon brushes - motor protection
• 1-speed oil bath drive - optimal lubrication
• Mechanical slip clutch
• Integrated water supply
• Stainless steel connection for R½" and 1¼" drill bits
• Motor and stand as a complete set
• Handy and robust
• Space-saving, compact drilling unit - low weight

Technical data

• Connection: Combi main shaft, UNC 1¼ male thread - R½ female thread
• Max. drill diameter (dry): n/a.
• Max. drill diameter (wet): 12 - 202 mm
• Voltage: 230 V
• Speed (no load): 750 /min.
• Power: 2600 W
• Length of column: 790 mm
• Connection: Combi main shaft, UNC 1¼ male thread - R½ female thread
• Length of column: 790 mm
• Machine connection: Universal adapter plate
• Max. drilling diameter: 250 mm
• Voltage: 230 V
• Speed (no load): 675 /min.
• Power: 2600 W
• Weight: 16.5
• Useful stroke: 550 mm
• Direction of rotation: Clockwise
