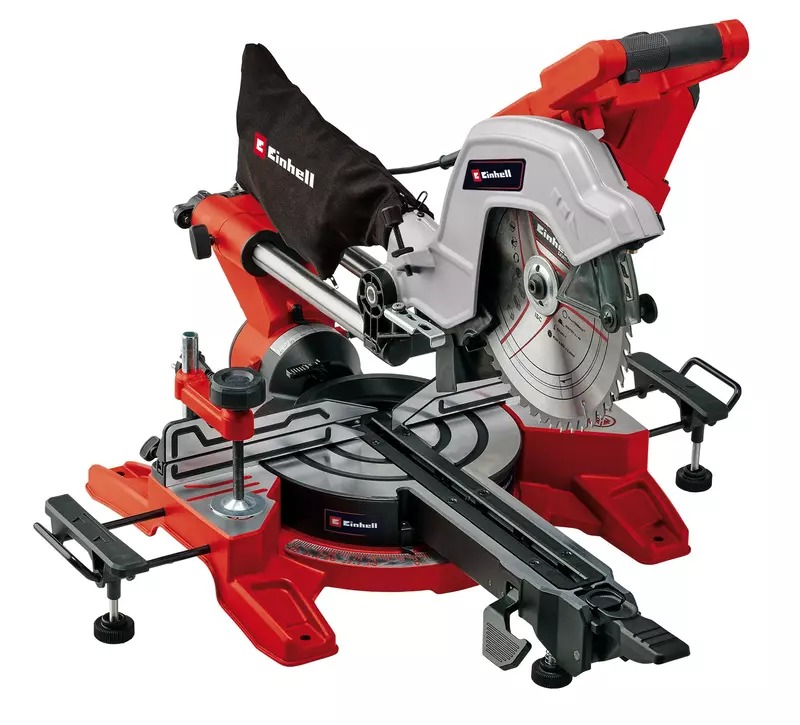

Einhell 4300877 TE-SM 10 L Dual Radial Cut/Zip saw 254 mm

Einhell 4300877 TE-SM 10 L Dual Radial Cut/Zip saw 254 mm

Special features

• Special bearing pull function with perfect gliding properties
• Saw head with smooth-running articulated mechanism for effortless cutting
• Turntable with locking positions at the most common angles
• Angle adjustment at the turntable conveniently via quick adjustment
• Highly visible laser for precise cutting lines
• Saw head can be tilted to the left and right for mitre cuts
• Table extensions on both sides for longer workpieces
• High-quality carbide saw blade for perfect cuts
• Clearly accessible spindle lock for easy saw blade changes
• Highly visible and legible protractors
• Incl. tensioner for securing the workpiece
• Chip collection hopper behind the saw blade for a clean workplace

Technical data

• % Power S6: 25
• Number of teeth saw blade 1: 48 pcs
• Saw blade diameter 1: 254 mm
• Saw blade mounting diameter: 30 mm
• Max. idle speed : 4800 min^-1
• Max swivel range (saw head): 45 °
• Max swivel range (saw table): 47 °
• Min. swivel range (saw head): 45 °
• Min. swivel range (saw table): 47 °
• Product weight: 15.09 Kg
• Power S6: 2100 W
• Cutting width 45° x 45°: 215 mm
• Cutting width 90° x 90°: 305 mm
• Cutting depth 45° x 45°: 45 mm
• Cutting depth 90° x 90°: 85 mm

Scope of delivery

• 1x radial cut/cutting cross-cut saw
• 1x exhaust connection (⌀ 36 mm)
