Euroboor 11036205141004 ECO.36+/T Magnetic core drill, 36 mm, 220 V

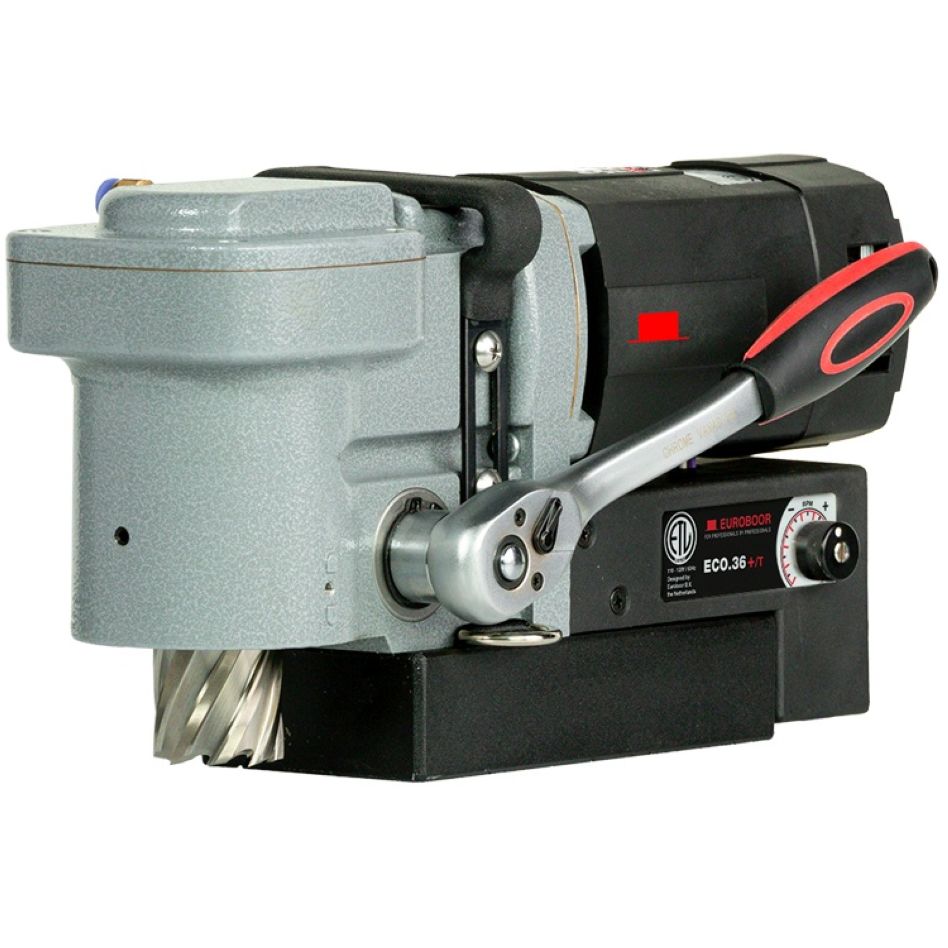

Euroboor ECO.36+/T Magnetic core drill, 36 mm, 220 V

Special features

The Euroboor ECO.36+/T magnetic core drill is - at only 165 mm (6 1/2″) in height - the lowest core drill on the market. The great advantage of the ECO.36+/T is that you can use the same machine for both drilling the hole and tapping threads. Its compact size makes this machine perfect for drilling in tight spaces where conventional machines cannot reach such as; H-beams, steel structures, plates, profiles, etc. The portable ECO.36+/T is equipped with innovative electronics that provide even more safety. These significantly reduce the risks of damage to the machine, tools and workpiece. In addition, the Gyro-Tec technology protects the user because the machine automatically shuts down in case of excessive vibration or sudden movement of the machine. Don't let confined spaces stop you. With the ECO.36+/T, you can drill with ease and confidence no matter how tight the space is

• Variable speed
• Tapping function to tap wire quickly and efficiently
• Integrated motor cable, handle and safety belt
• Left and right mounting power lever
• Integrated drill cooling and lubrication
• Sliding and removable protective cover
• Oil/lubricant bottle with magnetic system

Technical data

• Maximum core drill diameter: 36 mm
• Minimum core drill diameter: 12 mm
• Application: drilling, countersinking, tapping wire
• Connection 1 model: internal
• Connection 1 size: 19.05 mm
• Connection 1 type: Weldon
• Drilling at an angle at 0 degrees, distance to drill center: 50 mm
• Liquid content: 60 mm
• Drilling at an angle at 90 degrees, distance to drill center: 53 mm
• Maximum diameter countersinks: 40 mm
• Minimum diameter countersinks: 10 mm
• Electronic speed adjustment: yes
• Type of gearbox lubrication: grease
• Height: 165 mm
• Height maximum: 165 mm
• Height minimum: 165 mm
• Length: 310 mm
• Magnet height: 37 mm
• Magnet length: 160 mm
• Magnet width: 80 mm
• Magnetic force: 1200 kg
• Motor power: 1050 W
• Net weight: 10.3 kg
• Power source connection: EU plug according to CEE 7/7
• Supply current: AC
• Power source frequency: 50 - 60 Hz
• Power source: mains supply
• Power source voltage: 220 - 240 V
• Power source type: electric
• Loaded maximum speed gear 1: 400 rpm
• Loaded minimum speed gear 1: 120 rpm
• No load speed gear 1: 500 rpm
• Stroke: 40 mm
• Maximum diameter thread tapping: M12
• Minimum diameter thread tapping: M3
• Total power: 1100 mm
• Maximum diameter spiral drills: 14 mm
• Minimum diameter sprial drilling: 1 mm
• Width: 135 mm
