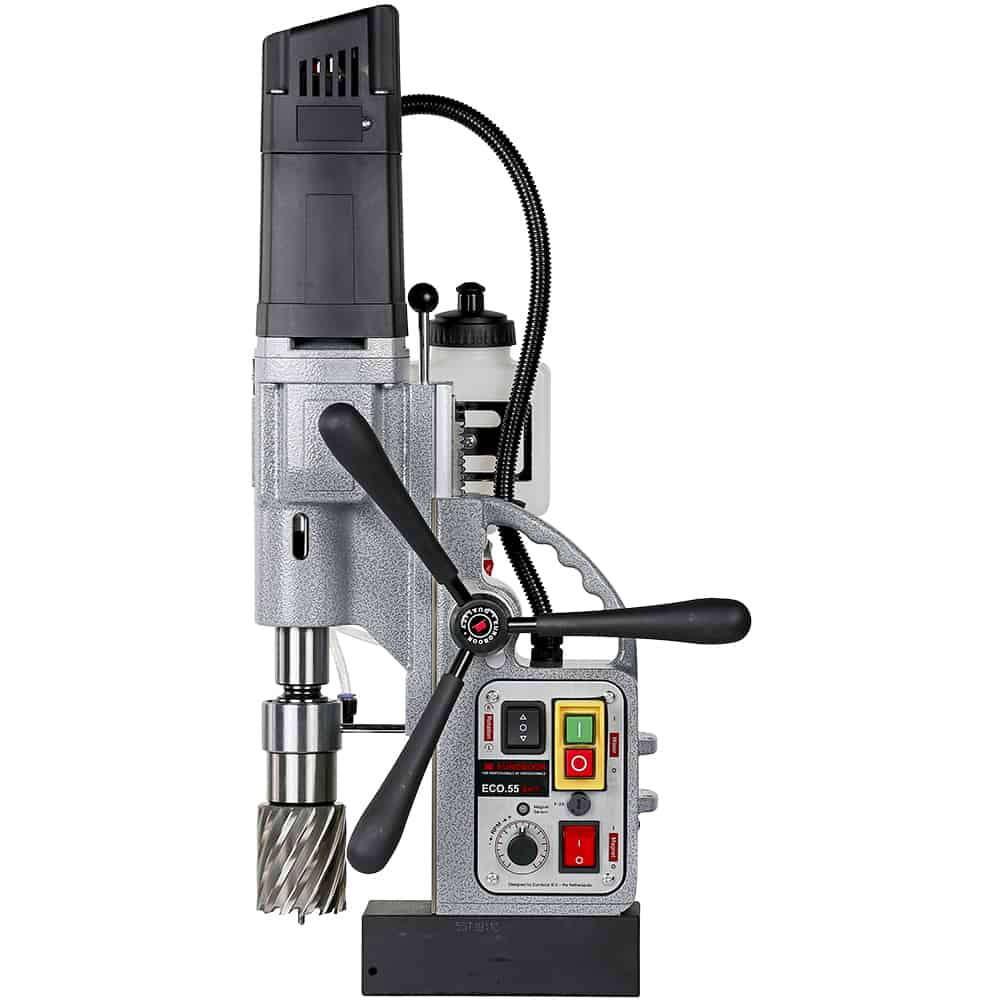

Euroboor 11055201142004 Eco.55S /T Core power drill

Euroboor 11055201142004 Eco.55S /T Core power drill

Powerful magnetic drill for quick work on site or in the workshop

Features

• The Euroboor ECO.55S /T magnetic core drill not only benefits from
• Smart Restart technology and a digital display that indicates the ideal workload, as well as oil-lubricated gearbox and innovative electronics that provide even greater safety, significantly reduce the risk of damage to the machine, tool and workpiece and protect the user in the event of excessive vibration or sudden movement
• The service life is considerably longer and high maintenance costs are avoided
• Digital display shows ideal workload
• Smart Restart technologie
• Right/left rotation functionality
• Electric speed control
• Easily accessible auto shut-off carbon brushes
• Precision bearing drive shaft
• Morse cone 3 axis with integrated drill cooling and lubrication
• LED belasting indicators
• Integrated carriage for high accuracy, extended life and minimum vibration
• High-precision gear rack for low maintenance and minimum wear correction Powerful
• CNC-manufactured magnet
• Reduced risk of damage to machine, tool and workpiece and injury to the user
• Suitable for use in areas and workplaces where the power supply is of lesser quality
• Reduced risk of anchor damage
• Reduced risk of damage to the control unit(s)
• Timely service notification to avoid extra costs due to unexpected downtime or unnecessary replacement of parts

Specifications

• Core drills Ø 12 - 55 mm
• Spiral drills Ø 1 - 23 mm
• Galvanizing Ø 10 - 60 mm
• Tapping M3 - M20
• Length 320 mm
• Width 200 mm
• Hoogte max. 490 - 660 mm
• Stroke 170 mm
• Weight 12.9 kg
• Magnet (l x w x h) 168 x 84 x 49 mm
• Magnetic force 1850 kg
• Motor power 1600 W
• Total power 1700 W
• Speed (no load) (I) 60 - 275 rpm (II) 100 - 500 rpm
• Toerental (belast 1600 W) (I) 60 - 275 rpm (II) 100 - 500 rpm
• Axis MT3 19,05 mm
• Power supply 220 - 240 V / 50 - 60 Hz

Scope of delivery

• 1 x ECO.55S /T magnetic core drill
• 1 x beschermkap
• 3 x handles
• 4 x taphouder (Weldon) M10, M12, M14, M16 (DIN 376)
• 1 x Allen key - 2.5 mm
• 1 x allen key - 4 mm
• 1 x Allen key - 5 mm
• 1 x drill bit cooling and lubrication system
• 1 x safety chain
• 1 x flask (200 ml) IBO.10 snijolie
• 1 x MC3 - 19.05 Weldon (3/4 ") shaft, including cooling ring (IMC.30/19-N)
• 1 x Morse taper drive key
• 1 x manual
• 1 x ear protection
• 1 x safety goggles
• 1 x safety gloves
