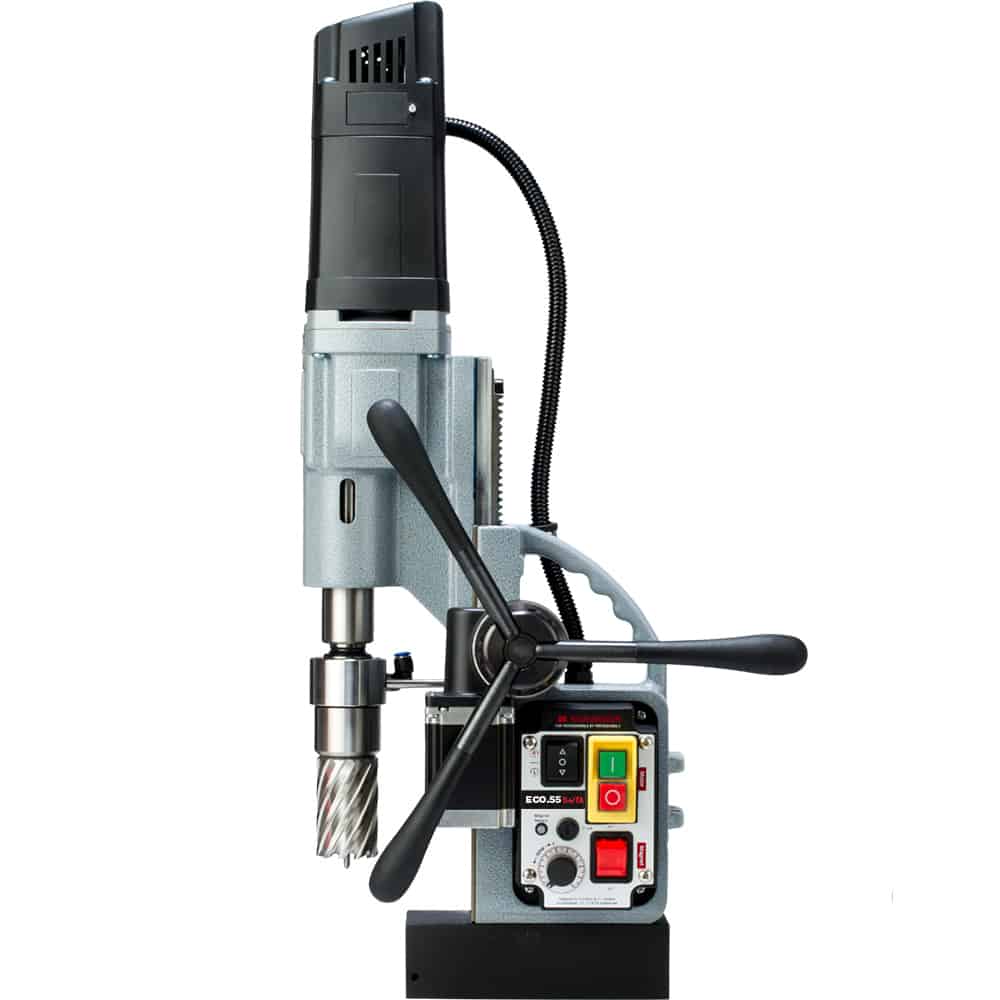

Euroboor 11055201242004 Eco.55S /TA Core power drill

Euroboor 11055201242004 Eco.55S /TA Core power drill

Powerful magnetic drill for quick work on site or in the workshop

Features

• The portable Euroboor ECO.55S /TA is our magnetic core drill that actually drills holes in metal with the highest efficiency
• This magnetic core drill benefits from an automatic drilling functionality with auto return for core drilling
• Furthermore, the ECO.55S /TA has a digital display which indicates the ideal workload and prevents the Smart
• Restart Technology excessive tool wear and failure
• The machine also benefits from innovative electronics that provide increased safety, significantly reducing the risk of damage to the machine, tool and workpiece and protecting the user in the event of excessive vibration or sudden movements
• The service life is considerably longer and you avoid high maintenance costs
• Automatic return drilling functionality for core drills
• Digital display with ideal workload
• Smart Restart technologie
• Highly suitable for tapping Right/left rotation Electronic speed adjustment
• Morse cone 3 axis with integrated drill cooling and lubrication
• Overload protection
• LED belasting indicators
• Oil lubricated gearbox with two gears
• Easily accessible carbon brushes
• Integrated carriage for high accuracy, extended life and minimum vibration
• High-precision gear rack for low maintenance and minimum wear correction
• Magneet LED-indicator
• Overheating protection
• Powerful CNC machined 2-way magnet, which means less energy consumption, less heat generation and longer life for the machine
• Reduced risk of damage to machine, tool and workpiece and injury to the user
• Suitable for use in areas and workplaces where the power supply is of lesser quality
• Reduced risk of anchor damage
• Reduced risk of damage to the control unit(s)
• Timely service notification to avoid extra costs due to unexpected downtime or unnecessary replacement of parts

Specifications

• Core drills Ø 12 - 55 mm
• Spiral drills Ø 1 - 23 mm
• Galvanizing Ø 10 - 60 mm
• Tapping M3 - M20
• Length 345 mm
• Width 305 mm
• Hoogte max. 490 - 660 mm
• Stroke 170 mm
• Weight 15.8 kg
• Magnet (l x w x h) 168 x 84 x 49 mm
• Magnetic force 1.850 kg
• Motor power 1.600 W
• Total power 1,700 W
• Speed (no load) (I) 60 - 275 rpm (II) 100 - 500 rpm
• Toerental (belast 1.600 W) (I) 60 - 275 rpm (II) 100 - 500 rpm
• As MC3 19,05 mm
• Power supply 220 - 240 V / 50 - 60 Hz
