Euroboor 11100201147004 Eco.100S /T Core power drill

8720143712449
Articlenr.
11100201147004
In stock, shipping within 2 working days
RRP 2,515.59 Special Price 2,012.22 1,662.99 Excl. VAT
-20%
Euroboor 11100201147004 Eco.100S /T Core power drill - 1
Euroboor 11100201147004 Eco.100S /T Core power drill - 1 Euroboor 11100201147004 Eco.100S /T Core power drill - 2 Euroboor 11100201147004 Eco.100S /T Core power drill - 3
Product description

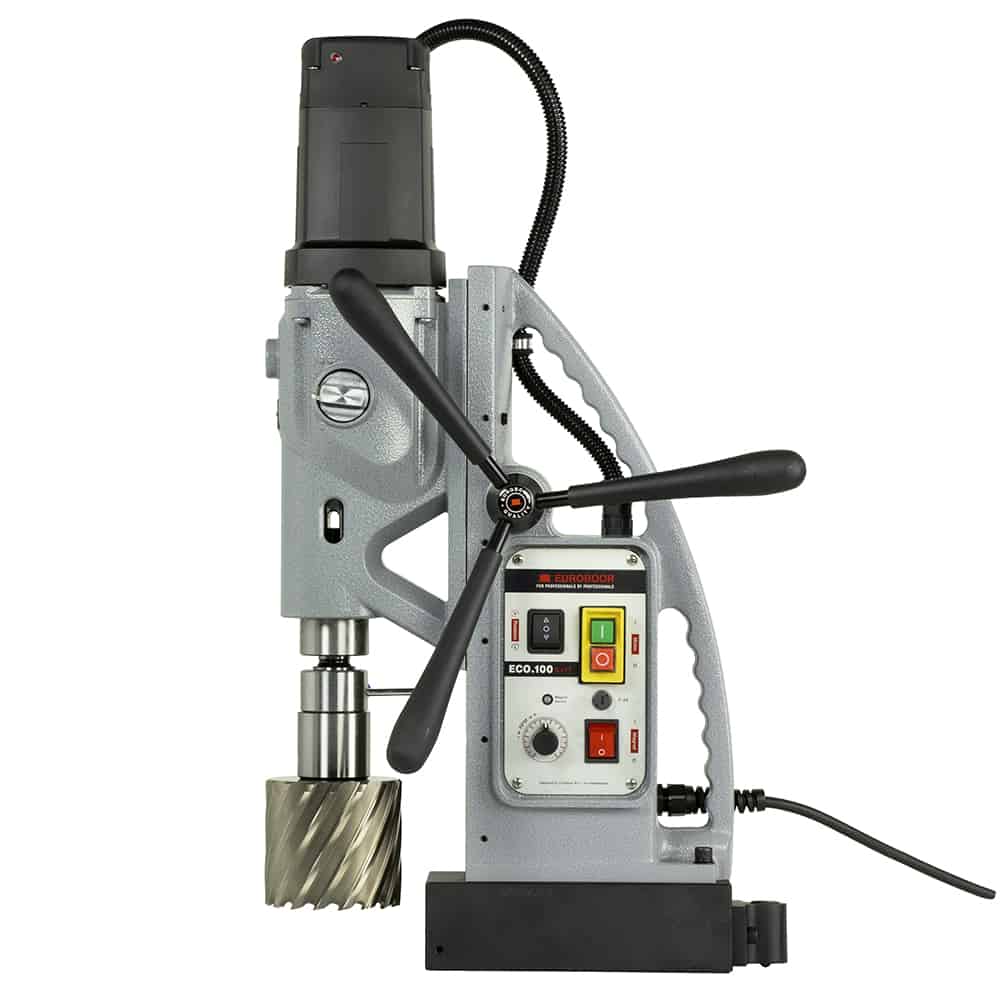

Euroboor 11100201147004 Eco.100S /T Core power drill

Powerful magnetic drill for quick work on site or in the workshop

Features

  • The Euroboor ECO.100S /T magnetic drill drills holes up to ø 100 mm (4") and is particularly suitable for tapping
  • This magnetic core drill features an extremely powerful 1,900 W (17.3 A) motor with a four-speed oil-lubricated gearbox and innovative electronics that provide even greater safety, significantly reducing the risk of damage to the machine, tool and workpiece and protecting the user in the event of excessive vibration or sudden movement
  • The service life is significantly longer and high maintenance costs are avoided
  • Four-speed gearbox
  • Extremely suitable for tapping
  • Rotating right/left
  • Electrical speed control
  • Clutch adjustable on motor housing
  • Overheating protection
  • Magneet LED Indicator
  • Powerful CNC machined 2-way magnet
  • Carbon brush protection: - Brush wear indicator - Automatic shutdown
  • GYRO-TEC safety Self-protection - Overvoltage protection - Fluctuation protection Oil-lubricated gear box

Specifications

  • Core drills Ø 12 - 100 mm
  • Twist drills Ø 1 - 31,75 mm
  • Galvanizing Ø 10 - 105 mm
  • Taps M3 - M30
  • Length 365 mm
  • Width 310 mm
  • Hoogte max. 510 - 710 mm
  • Stroke 260 mm
  • Weight 28 kg
  • Magnet (l x w x h) 220 x 110 x 64 mm
  • Magnetic force 3000 kg
  • Motor power 1900 W
  • Total power 2050 W
  • Toerental (onbelast) (I) 42 - 110 rpm (II) 65 - 190 rpm (III) 140 - 400 rpm (IV) 220 - 620 rpm
  • Speed (loaded 1900 W) (I) 85 rpm (II) 152 rpm (III) 270 rpm (IV) 480 rpm Shaft MT3 19.05 mm
  • Power supply 110 - 120 V / 60 Hz 220 - 240 V / 50 - 60 Hz

Scope of delivery

  • 1x ECO.100S /T magnetic core drill
  • 3x handles
  • 1X beschermkap
  • 1x allen key - 2,5 mm
  • 1x allen key - 4 mm
  • 1x allen key 5 mm
  • 1x drill bit cooling and lubrication system
  • 1x safety chain
  • 1x bottle IBO.10 cutting oil (200 ml)
  • 1x Morse cone 3 axis, including IMC.30/19-N cooling ring
  • 1x Morse taper drive key
  • 1x manual
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
More Information
More Information
EAN 8720143712449
Ordernumber 11100201147004
Manufacturer Euroboor
Voltage 230 V
Warranty 1 year
