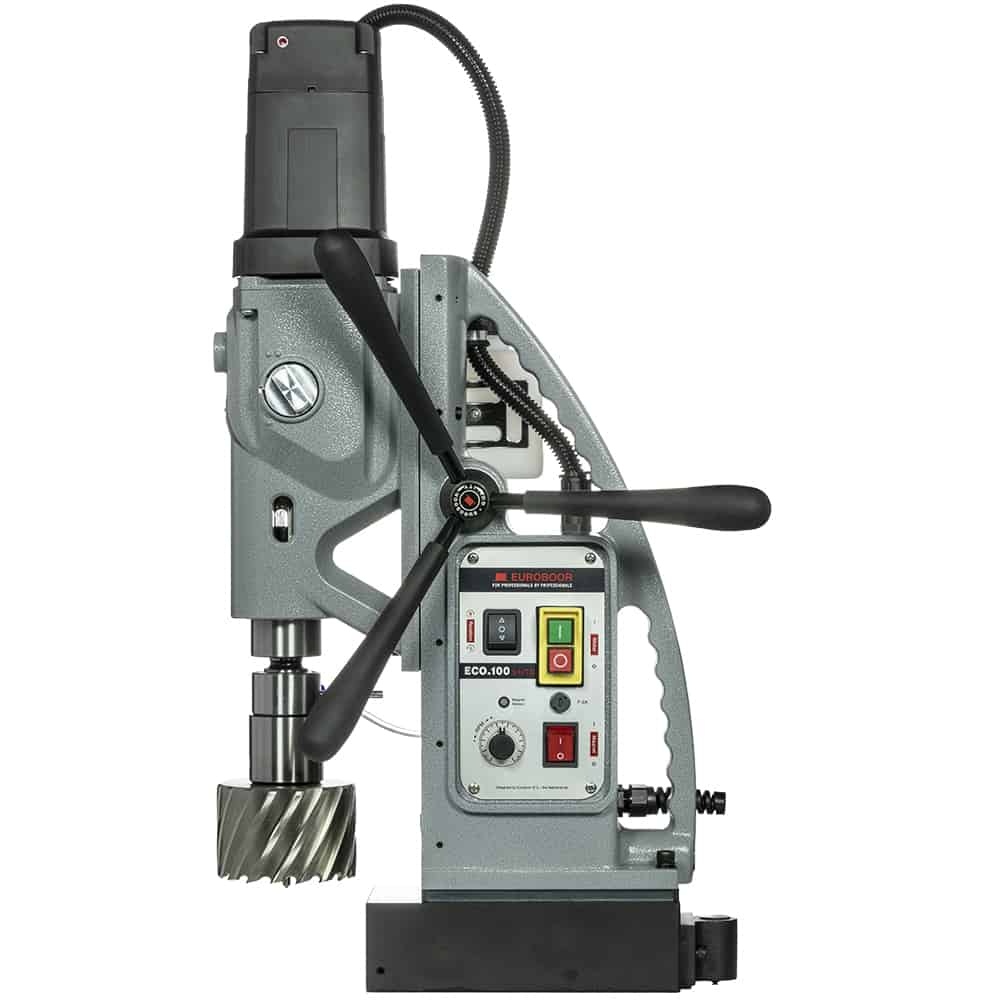

Euroboor 11100202147004 Eco.100S /TD Core power drill

Euroboor 11100202147004 Eco.100S /TD Core power drill

Powerful magnetic drill for quick work on site or in the workshop

Features

• The portable Euroboor ECO.100S /TD magnetic drill has a unique swivel base, allowing the machine to rotate 30º to either side and to slide 15 - 20 mm (9/16?- 13/16?) forwards and backwards
• This magnetic core drilling machine drills holes up to ø 100 mm (4?) and is particularly suitable for tapping
• The machine benefits not only from an oil-lubricated gearbox but also from innovative electronics that provide even greater safety, significantly reducing the risk of damage to the machine, tool and workpiece while protecting the operator in the event of excessive vibration or sudden movement
• The service life is considerably longer and high maintenance costs are avoided
• Swivel base for accurate positioning
• Four-speed gearbox
• Extremely suitable for tapping
• Rotating right/left
• Electrical speed control
• Overheat protection
• Magneet LED Indicator
• Powerful CNC machined 2-way magnet
• Carbon brush protection: - Brush wear indicator - Automatic shutdown
• GYRO-TEC safety
• Self protection - Overvoltage protection - Fluctuation protection
• Oil-lubricated gearbox

Specifications

• Core drills Ø 12 - 100 mm
• Twist drills Ø 1 - 31,75 mm
• Galvanizing Ø 10 - 105 mm
• Taps M3 - M30
• Length 365 mm
• Width 310 mm
• Hooght 510 - 710 mm
• Stroke 260 mm
• Weight 31 kg
• Magnet (l x w x h) 220 x 110 x 64 mm
• Magnetic force 3000 kg
• Motor power 1900 W
• Total power 2050 W
• Toerental (onbelast) (I) 42 - 110 rpm (II) 65 - 190 rpm (III) 140 - 400 rpm (IV) 220 - 620 rpm
• Speed (loaded 1900 W) (I) 85 rpm (II) 152 rpm (III) 270 rpm (IV) 480 rpm Shaft MT3 19.05 mm
• Power supply 110 - 120 V / 60 Hz 220 - 240 V / 50 - 60 Hz
