Euroboor 21010004301004 HCX.430 Core drill bit, HSS, D 43 mm, DoC 100 mm, Weldon

Eurobore HCX.430 Core drill bit, HSS, D 43 mm, DoC 100 mm, Weldon

Special features

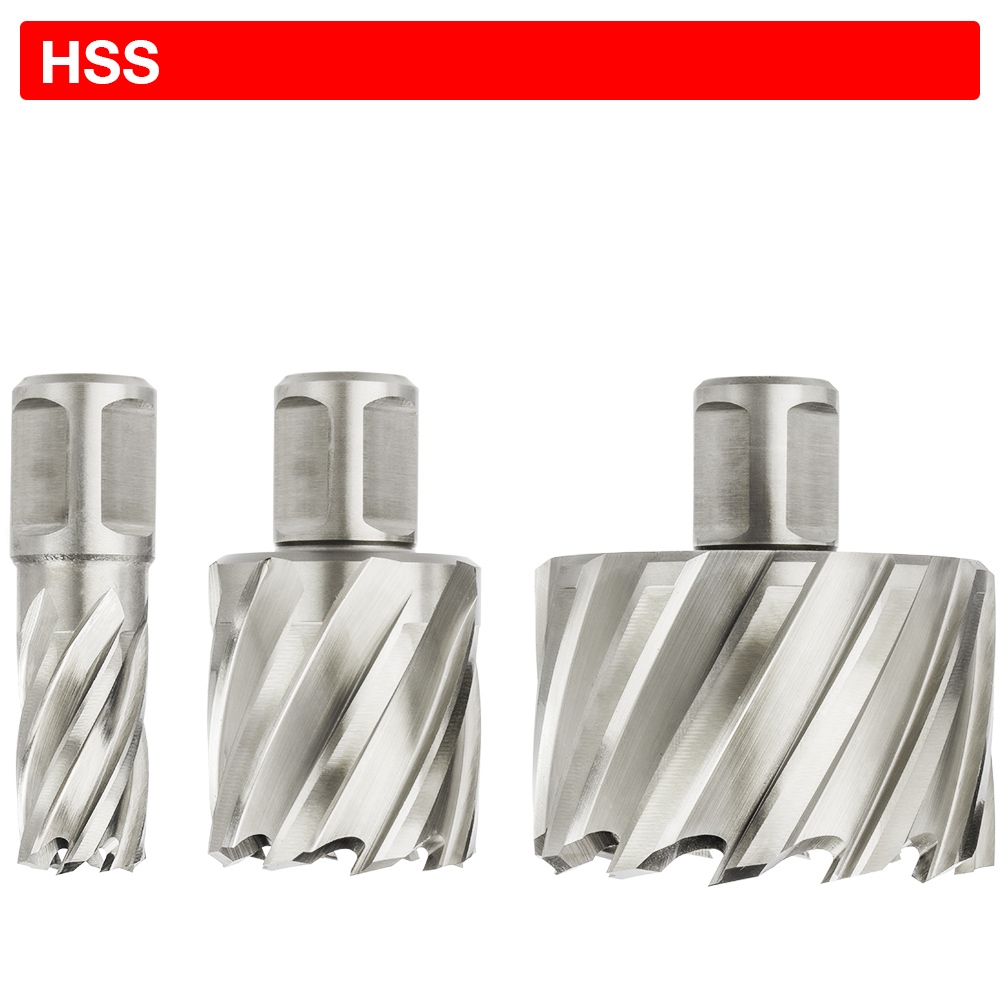

The HSS core drill has a unique tooth geometry and alternating tooth shapes which ensures optimum chip removal, superior prop ejection and precise size. This HSS core drill is widely used in drilling steel, copper, aluminum, stainless steel and plastic, in both sheet and tubular materials. Euroboor HSS core drills have a tooth geometry optimized for use on metal workpieces existing one layer, ensuring the fastest and best drilling performance. The residue created using these core drills is the distinctive Euroboor prop. The edge of this prop is exactly what prevents our HSS core drills from drilling through the second layer of material.

Technical data

• Application: drilling
• Connection 1 model: ejection
• Connection 1 size: 19.05 mm
• Connection 1 type: Weldon
• Drilling depth: 100 mm
• Outside / maximum diameter: 43 mm
• Net weight: 0.78 kg
• Diameter hole centering pin: 6.35 mm
• Measuring system: mm (metric)
