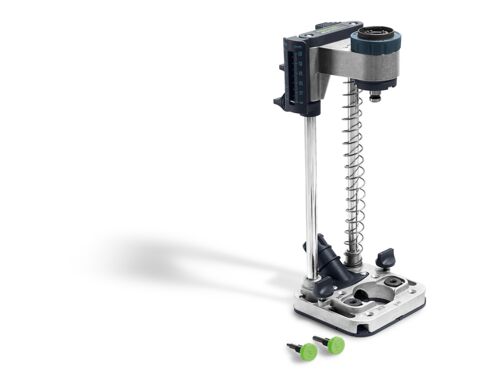

Festool Accessories 577970 Mobile drill stand MB 40

Festool 577970 Mobile drill stand MB 40

Special features

• Precise: Robust and stable construction - for precise drilling
• Exact depth setting: With zero position and readable drilling depth to 50 mm. Indication in mm and inch
• Unique: With hole driving function for drill holes in the 32 system
• Combinable: The chuck can be fitted quickly and without tools. The CENTROTEC chuck also allows drill bits to be inserted and replaced quickly
• Integrated: Chip extractor for vacuum cleaners from dust class M and hose diameter D 27 onwards
• Easy positioning: Markings on the base plate simplify exact alignment on the workpiece
• Stable: Rubber sole for precise alignment without slipping

Application

• Making drill holes at a 90° angle
• Drilling rows of holes in system 32
• Drill holes for hardware and concealed hinges
• Drill holes for platform console carrier
• Drilling in wood, metal and plastic
• Branch holes drilled out
• Assembly work
• Kitchen Construction
• Furniture Industry
• For CXS/TXS 12, CXS/TXS 18, TPC 18/4, TDC 18/4, C 18 and T 18 with FastFix attachment (not for CXS/TXS)

Technical data

• Adapter for FastFix clamping neck
• Max. drilling diameter soft wood (forstner drill bit) 40.00 mm
• Max. drilling diameter soft wood (snake drill bit) 16.00 mm
• Ground area 110 x 114.00 mm
• Height 312.00 mm
• Setting range depth stop 0.00 - 50.00 mm
• Max. screw diameter (templates/fixtures) 4.00 mm
• Stroke with depth stop, incl. spring 187.00 mm
• Outreach without depth stop, without spring 203.00 mm
• Dust extraction connection Ø 27 mm
• Product weight without accessories 1.40 kg

Scope of delivery

• Hole grabber 5 mm
• Hole grab pin 3 mm
