Fischer 30151 Channel plate anchor FHY M 10 stainless steel A4 20 pcs.

Fischer 30151 Channel plate anchor FHY M 10 stainless steel A4 20 pcs.

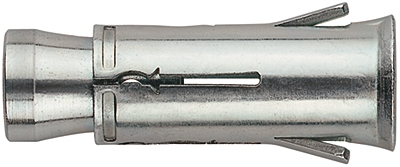

The Fischer Sheet Metal Anchor FHY is an impact anchor with internal thread made of A4 stainless steel. In the push-through assembly, the FHY is inserted into the drilled hole by hand and tapped in with the hammer in line with the surface of the building material. By applying the tightening torque, the taper is pulled into the spreader sleeve. In the hollow space the cone expands and in solid building material it tightens against the wall of the drilled hole. The Fischer Ductile Plate Anchor FHY is ideal for fixing wood and steel structures and brackets in hollow slabs of prestressed concrete outdoors.

Advantages

• The active principle of the anchor means that the FHY can be used in cavities or in solid materials up to 5 cm from the reinforcement. This guarantees optimum flexibility and user-friendly installation
• The embossed edge prevents the anchor sleeve from slipping into the cavity, thus ensuring trouble-free installation
• The optimized geometry minimizes the zone energy and therefore allows use in extremely small spaces. This enables user-friendly mounting
• The metric internal thread allows the use of standard screws or threaded rods for ideal adjustment for the intended use.

Applications

• Channel plates >= C45/55

Building Materials

• The FYH is suitable for the front plug assembly
• Insert the channel plate anchor FHY into the hole by hand and tap into the hole with the hammer flush with the surface of the anchoring substrate
• To spread, the sleeve anchor FHY must be able to set against the mounting piece
• The application of the tightening torque pulls the taper into the spreader sleeve, spreads the sleeve into the cavity or strains in solid material against the wall of the borehole.

Technical data

• Drill hole diameter : 16 mm
• Plug length : 52 mm
• Thread : M 10
• Min. drill hole depth : 65 mm
• Min. screw-in depth : 52 mm
• Content : 20
