Fischer 40944 Rapid construction anchor FBN II 10/140 (10X216) electrolytically galvanized steel 20 pieces

Fischer 40944 Rapid construction anchor FBN II 10/140 (10X216) electrolytically galvanized steel 20 pieces

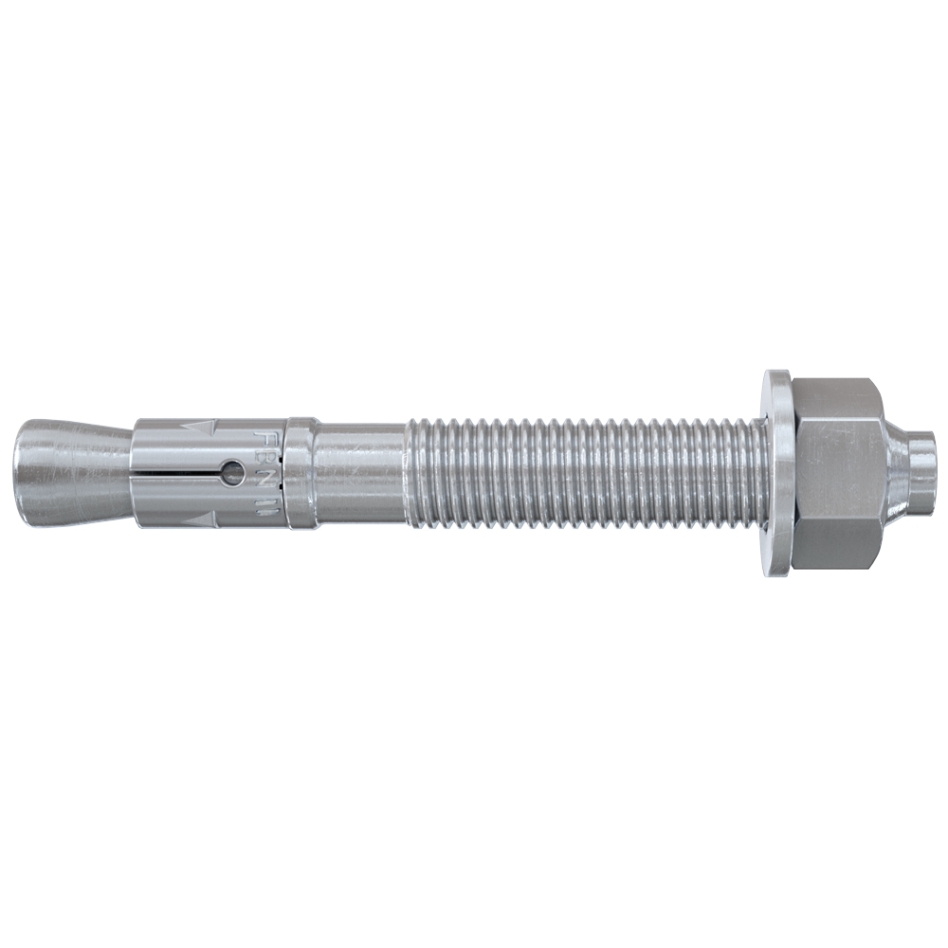

The Fischer Rapid Construction Anchor FBN II is a steel anchor for efficient fixings in uncracked concrete. Thanks to the long thread and two anchoring depths, the Fischer Rapid Construction Anchor FBN II can be used particularly flexibly. In addition to front and push-through mounting, the rapid construction anchor is also suitable for spacer mounting. In the galvanized version, the rapid construction anchor is suitable for fixing handrails, consoles and cable ducts in interior construction.

Advantages

• The standard anchoring depth provides the greatest load capacities. therefore, fewer anchor points and smaller anchor plates are required
• The reduced anchoring depth reduces the depth of the borehole. This reduces mounting effort and increases flexibility
• In addition, the anchor is also ideally suited for large thicknesses of mounting pieces
• The long thread allows compensation of tolerances of components and remotely mounted structures, increasing flexibility
• Fewer hammer blows and minimal tightening slip make for noticeably easier assembly
• The insertion cam protects the threads from damage and thus ensures time-saving assembly and disassembly of the mounting piece.

Applications

• Concrete C20/25 to C50/60, uncracked
• Concrete C12/15
• High-density natural stone

Building Materials

• The FBN II is suitable for push-through and push-through mounting; also suitable for remote mounting under certain conditions
• Prior to assembly, place the hex nut in the optimum position (the insertion pin protrudes approx. 3 mm from the hex nut)
• When torque is applied, the cone bolt is pulled into the spreader clamp, clamping it against the borehole wall
• The head relief allows easy use of the anchor
• For serial installation, we recommend the use of the FABS anchor bolt mounting attachment.

Technical data

• Approval : relevant
• Drill hole diameter : 10 mm
• Min. hole depth for through-hole mounting : 208 mm
• Plug length : 216 mm
• Max. useful length lift,stand/lift,red : 140/150 mm
• Thread : M 10 x 176 mm
• Key width : 17 mm
• Content : 20
