The Fischer Distance Mounting System Thermax 8 is a solution for fixing into the exterior wall or thermal bridge in the WDVS. The hanger screw with the glass fiber reinforced taper mills itself automatically through the plaster in the insulation material. The hanger screw is screwed into the Universal plug UX during installation and thus anchors firmly in the building material. The anti-cold cone on the head of the stick screw interrupts the thermal bridge and takes up the outer fastening. The Thermax fixes light loads such as lamps, mailboxes or lightning conductors in concrete, aerated concrete and masonry made of solid and perforated brick.

Advantages

• Remote mounting allows adjustment of the mounting piece for precise positioning, avoiding pressure points or damage to the WDVS
• The plastic cone interrupts the thermal bridges between the mounting piece and the internal fastener, thus providing an energetically improved fastener
• The fiberglass-reinforced plastic cone mills itself automatically into the WDVS, allowing for easy and quick assembly without the use of special tools
• The combination of the Thermax 8 with the universal plug UX anchors into the substrate
• Without the UX plug, direct mounting into the wooden substrate is also possible after pre-drilling.

Applications

• Concrete
• Perforated brick
• Hollow building block of light concrete
• Perforated limestone
• Solid limestone
• Full brick
• Aerated concrete
• Wood

Building Materials

• Thermax 8 is suitable for front plug mounting
• The fiberglass reinforced cone automatically mills through the plaster in the insulation material during installation
• Thus, the anti-cold cone reliably interrupts the heat bridge
• Assembly is done entirely without special tools
• When used in wood without a dowel, the wood (see the footnote below the table) as well as the plaster must be pre-drilled: Thermax 8: d0 = 14 mm, h0 = 50 mm
• The range includes connection options using metric screws M6, sheet metal screws 6.3 mm, chipboard screws 6.0 mm or chipboard screws 4.5 - 5.5 mm when using a plug SX 5.

Technical data

• Drill hole diameter : 10 mm
• Drill hole depth : 160 mm
• Anchoring depth : 60 mm
• Diameter of cover : 18 mm
• Key width : 10 mm
• Chipboard screw and metric bolt : 4.5 - 6.0 / M6 / 6.3

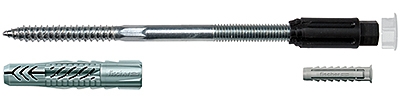

• Contents : UX 10 / Thermax / SX 5 / Cover cap
• Content : 20
