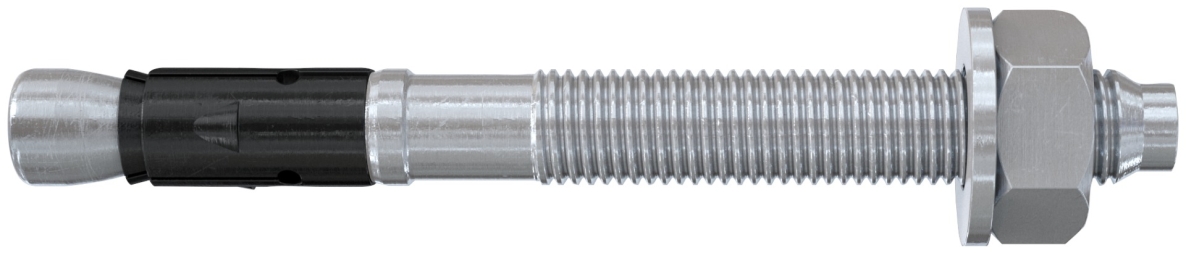

Fischer 46636 Bolt anchor FAZ II 24/60 electrolytically galvanised 5 pcs.

Fischer 46636 Bolt anchor FAZ II 24/60 electrolytically galvanised 5 pcs.

Features

• The anchor bolt for the toughest demands in concrete.
• Strong and flexible
• With staggered clip for maximum load capacity: this requires fewer fastening points and smaller anchor plates.
• This saves time and money
• Minimal tightening lip.
• Easy assembly reduces time and effort
• With approval for cracked concrete and fire inspection: maximum safety
• Very well suited for heavy loads
• The proven staggered clip allows the highest load capacities, so fewer fastening points and smaller anchor plates are required
• Fewer hammer blows and minimal tightening slippage make for noticeably easier and more comfortable application
• The international approvals guarantee optimum safety and the best performance.
• Applications in earthquake zones are also covered by these approvals
• Applications: Steel structures, Railings, Consoles, Ladders, Cable trays, Machinery, Stairs, Fencing, Facade systems, Timber structures

Technical data

• Approved for: Concrete C20/25 to C50/60, cracked and uncracked
• Also suitable for: Concrete C12/15, Concrete C80/95 (rating available)
• Goedkeuring: ETA-05/0069, DoP 0186, DoP No. 0009, DoP No. 0081, DoP No. 0121, ESR-2948
• Approval Yes
• ICC approval Yes
• Seismic approval C1
• Drilling diameter d0 24 [mm]
• Min. borehole depth for through hole mounting h2 215 [mm]
• Plough length l 235 [mm]
• Max. useful length lift, stand/lift, red tfix 60 / - [mm]
• Thread Ø x Length M24 x 88 [mm]
• Wrench size SW 36 [mm]
• Type of packaging Box
• Quantity 5 [St.]
• GTIN (EAN Code) 4006209466360

Includes

• fischer Piercing anchor FAZ II 24/60 electrolytically galvanised
• Number per package: 5 pieces
