Fischer 48332 Impact anchor EA II M10 x 30 electrolytically galvanized steel 50 pcs.

Fischer 48332 Impact anchor EA II M10 x 30 electrolytically galvanized steel 50 pieces

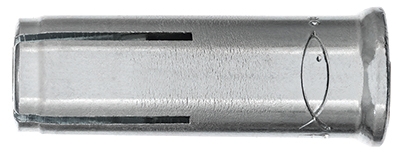

The Fischer Insert anchor EA II is an internal threaded insert anchor made of galvanized steel. The impact anchor is inserted with the hammer and aligned with the anchoring ground. Using the EHS Plus mounting aid or the EMS machine mounting aid, the sleeve is spread open by screwing in the internal pin and thus tightens against the wall of the drilled hole. No torques need to be applied to the screw or threaded rod for correct spreading. The Fischer Impact Anchor EA II is ideal for fixing sprinkler systems, grilles or consoles indoors with approval.

Advantages

• The embossed collar prevents the anchor sleeve from slipping, thus ensuring trouble-free stroke mounting
• The metric internal thread allows the use of standard screws or threaded rods for ideal adaptation for the intended use
• The EA II S-SDS machine mounting attachment enables easy assembly, especially for series installations
• The relief applied during spreading with the EAW H Plus mounting aid allows easy use of the anchor and provides additional safety.

Applications

• Concrete C20/25 to C50/60, cracked, for multiple fixing of non-load bearing systems
• Concrete C20/25 to C50/60, uncracked
• Concrete C12/15
• High-density natural stone

Building Materials

• The EA II is suitable for push-through mounting
• Place the impact anchor in the drill hole and move it flat on the surface of the anchor base with a hammer

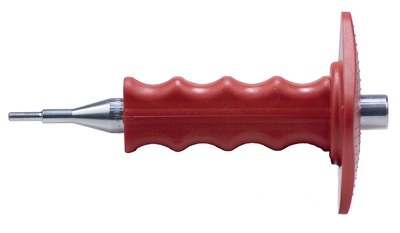

• The sleeve is then spread by driving in the internal bolt with the EAW H Plus mounting tool (alternative: EA II-SDS machine mounting tool) and clamping it against the borehole wall
• The mounting aids should be placed on the collar of the anchor for proper spreading.

Technical data

• Approval : relevant
• Drill hole diameter : 12 mm
• Min. drill hole depth when pre-piercing : 33 mm
• Plug length : 30 mm
• Internal thread : M 10
• Min. screw-in depth : 10 mm
• Max. screw-in depth : 14 mm
• Content : 50
