Fischer 48416 Impact anchor EA II M16 x 65 stainless steel A4 20 pieces

Fischer 48416 Impact anchor EA II M16 x 65 stainless steel A4 20 pcs.

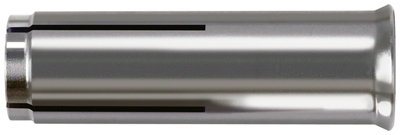

The Fischer Insert anchor EA II A4 is an internal threaded insert anchor made of stainless steel. The impact anchor is applied with the hammer and in line with the anchoring ground. With the installation aid EHS Plus or the machine installation aid EMS, the sleeve is spread open by screwing in the internal pin and thus tightens against the wall of the drilled hole. No torques need to be applied to the screw or threaded rod for correct spreading. The Fischer Impact anchor EA II A4 is ideal for fixing steel structures and approved formwork outdoors.

Advantages

• The embossed collar prevents the anchor sleeve from slipping, thus ensuring trouble-free stroke mounting
• The metric internal thread allows the use of standard screws or threaded rods for ideal adaptation for the intended use
• The EA II S-SDS machine mounting attachment enables easy assembly, especially for series installations
• The relief applied during spreading with the EAW H Plus mounting aid allows easy use of the anchor and provides additional safety.

Applications

• Concrete C20/25 to C50/60, cracked, for multiple fixing of non-load bearing systems
• Concrete C20/25 to C50/60, uncracked
• Concrete C12/15
• High-density natural stone

Building Materials

• The EA II is suitable for push-through mounting
• Place the impact anchor in the drill hole and move it flat on the surface of the anchor base with a hammer

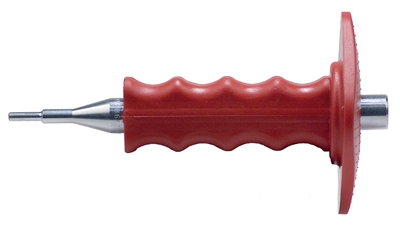

• The sleeve is then spread by driving in the internal bolt with the EAW H Plus mounting tool (alternative: EA II-SDS machine mounting tool) and clamping it against the borehole wall
• The mounting aids should be placed on the collar of the anchor for proper spreading.

Technical data

• Approval : relevant
• Drill hole diameter : 20 mm
• Min. borehole depth for front mounting : 70 mm
• Plug length : 65 mm
• Internal thread : M 16
• Min. screw-in depth : 16 mm
• Max. screw-in depth : 28 mm
• Content : 20
