Fischer 50346 Nail plug N 10 x 100/50 S with countersunk head 50 pcs

Fischer 50346 Nail plug N 10 x 100/50 S with countersunk head 50 pcs

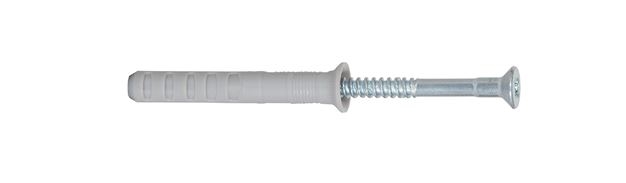

The fischer countersunk head nail connector N-S consists of a high quality nylon plug and a galvanized nail screw. These are pre-mounted for quick installation. The nail plug is inserted through the mounting piece to save time. When the nail screw is pressed in, the sleeve spreads open and anchors in the material. The fischer Countersunk N-S nail plug is ideal for securing wood constructions in all kinds of building materials in interior construction.

Features

• The fast stroke assembly saves time: ideal for serial assembly
• Simple and safe assembly
• The integrated weft lock prevents the plug from spreading prematurely
• Subsequent disassembly of the nail screw with Phillips head is possible
• With countersunk head

Benefits

• The quick push-through assembly reduces labor effort and allows efficient serial assembly
• The integrated stopper prevents the plug from spreading prematurely (clamping) and ensures problem-free mounting
• The thread of the nail-screw in combination with the Phillips head enables the turning of the screw and thus the dismantling. The wide range of diameters and usable lengths offers the right dowel for every fastening

Applications

• Supporting structures of wood, Wall connection or plaster profiles, Cable and pipe clamps, Punched tapes
• Building materials Concrete, Solid sand-lime brick, Solid brick, Natural stone, Solid lightweight concrete brick, Aerated concrete, Gypsum blocks, Perforated sand-lime brick, Hollow concrete brick

Montage

• The nail plug N is suitable for through hole mounting
• After being hammered in, the nail-screw causes the plug to expand in two directions and therefore offers a firm anchorage in the building material
• Countersunk screws are recommended for installation of wood constructions; for metal constructions use dowels without collar and for slotted holes use dowels with collar

Specifications

• Drill diameter: 10 mm
• Effective anchoring depth: 50 mm
• Plug length: 100 mm
• Minimum depth of drill hole for through hole mounting: 115 mm
• Maximum attachment thickness: 50 mm
• Intake: PZ3
• Number: 50 pieces
