Fischer 522124 Piercing anchor FAZ II 16/5 electrolytically galvanized steel 10 pieces

Fischer 522124 Piercing anchor FAZ II 16/5 electrolytically galvanized steel 10 pieces

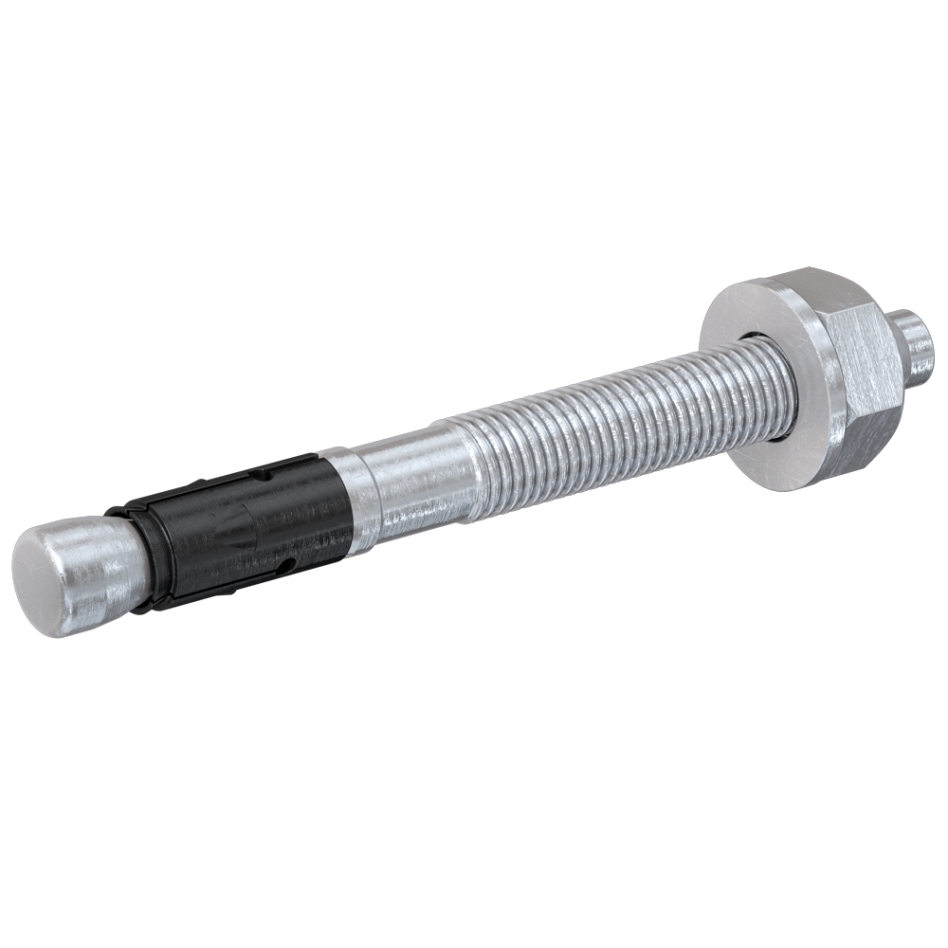

The anchor bolt for the very toughest requirements in concrete. Strong and flexible. The fischer Piercing anchor FAZ II is the steel anchor for the highest demands. With this anchor, heavy loads are fixed in cracked concrete. The FAZ II can be used particularly flexibly thanks to its simple assembly. The proven spreader clip guides the loads particularly reliably into the concrete and ensures the highest load-bearing capacity. With the galvanized steel version, loads are fixed indoors. The steel anchor is ideally suited for fixing railings, cable ducts and brackets, for example.

Advantages

• With the proven spreader clip, the largest load capacities are possible. therefore, fewer attachment points and smaller anchor plates are required.
• Fewer hammer blows and minimal tightening slip make for noticeably easier and comfortable application.
• International approvals guarantee optimum safety and best performance. Applications in earthquake zones (Seismik) are also covered by these approvals.

Characteristics

• With spreader clip for the highest load capacity: therefore, fewer attachment points and smaller anchor plates are required. This saves time and costs.
• Minimal tightening slip. Easy assembly reduces time and effort.
• With approval for cracked concrete and fire approval: maximum safety.

Applications

• Steel structures, Railings, Consoles, Ladders, Cable trays, Machinery, Stairs, Fencing, Facade systems, Wood structures.

Building Materials

• Approved for: Concrete C20/25 to C50/60, cracked and uncracked
• Also suitable for: Concrete C12/15 Concrete C80/95 (classification available)

Approval

• ETA-05/0069 DoP No. 0009 DoP No. 0081 DoP No. 0121 DoP No. 0756-CPD-0062 ESR-2948

Assembly

• The FAZ II is suitable for push-through and front mounting; also suitable for remote mounting under certain conditions.
• Prior to mounting, place the hex nut in the optimum position (the insertion pin protrudes approx. 3 mm from the hex nut).
• When torque is applied, the cone bolt is pulled into the spreader clamp, clamping it against the borehole wall.
• The head relief allows easy use of the anchor.
• For serial installation, we recommend the use of the FABS anchor bolt mounting attachment.

Technical data

• Approval ICC approval
• Seismic-approval C1/C2
• Drill hole diameter d0 16 [mm]
• Min. drill hole depth for through-hole mounting h2 115 [mm]
• Plug length l 128 [mm]
• Max. useful length lift,stand/lift,red tfix 5/25 [mm].
• Thread Ø x length M 16 x 64 [mm].
• Key width SW 24 [mm].

Standard included

• 10 pieces
