Fischer 522726 Frame/Construction plug SXRL 10 x 200 FUS electrolytically zinc plated steel 50 pieces

Fischer 522726 Frame/Construction plug SXRL 10 x 200 FUS electrolytically zinc-plated steel 50 pieces

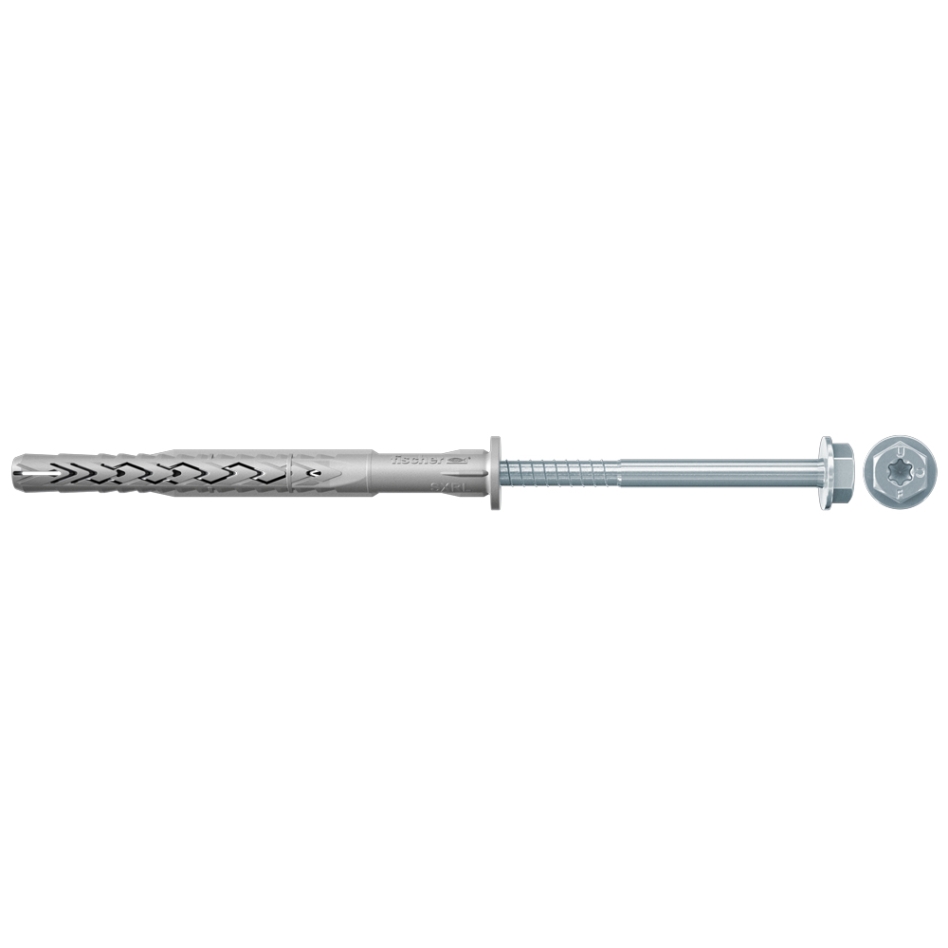

The Fischer Construction plug SXR FUS with the Fischer screw with hexagonal head with matching washer and integrated bit holder T40 is approved for multiple fixings of non-load-bearing systems in masonry, concrete and aerated concrete. In masonry made of perforated brick, the spreading zones of the plug ensure even force distribution, in aerated concrete and solid material they join together to form a long spreading element. With the locking bolt made of galvanized steel, the construction plug is very suitable for fastening facade, ceiling and roof constructions made of metal.

Advantages

• The long spreading element with multiple anchoring depths of 50, 70 and 90 mm makes the SXRL a multi-purpose product.
• The plug's special geometry distributes the fastening forces evenly over the walls of the drilled hole
• When anchoring in perforated and solid building materials, the two spreading zones realize optimal fastening values
• When the lure is placed deeper, the longer ribs prevent the lure from rotating with it during mounting.

Applications

• Perforated brick
• Aerated concrete
• Hollow building block of light concrete
• Perforated limestone
• Thermal insulation blocks
• Solid building block of normal and lightweight concrete
• Full brick
• Solid limestone
• Concrete >= C12/15
• High-density natural stone
• Gypsum Blocks

Building Materials

• The SXRL is suitable for push-through mounting
• In masonry made of perforated stone, the two spreading zones ensure force distribution that spares the substrate. Due to the second spreading zone, sills of perforated stone are not irreparably damaged and can therefore be used to further conduct the forces
• The two spreading zones merge into the aerated concrete and solid building materials to form one long spreading element and guarantee an even, surface-distributed distribution of the load in the substrate
• Ideally suited for fixing metal structures
• For fastening wood structures, it is recommended to use the SXRL-T with countersunk screw.

Technical data

• DIBt approval : Relevant
• Approval : relevant
• Drill diameter : 10 mm
• Plug length : 200 mm
• Min. hole depth for through-hole mounting : 210 mm
• Useful length at anchoring depth 70 : 130 mm
• Useful length at anchoring depth 90 : 110 mm
• Content : 50
