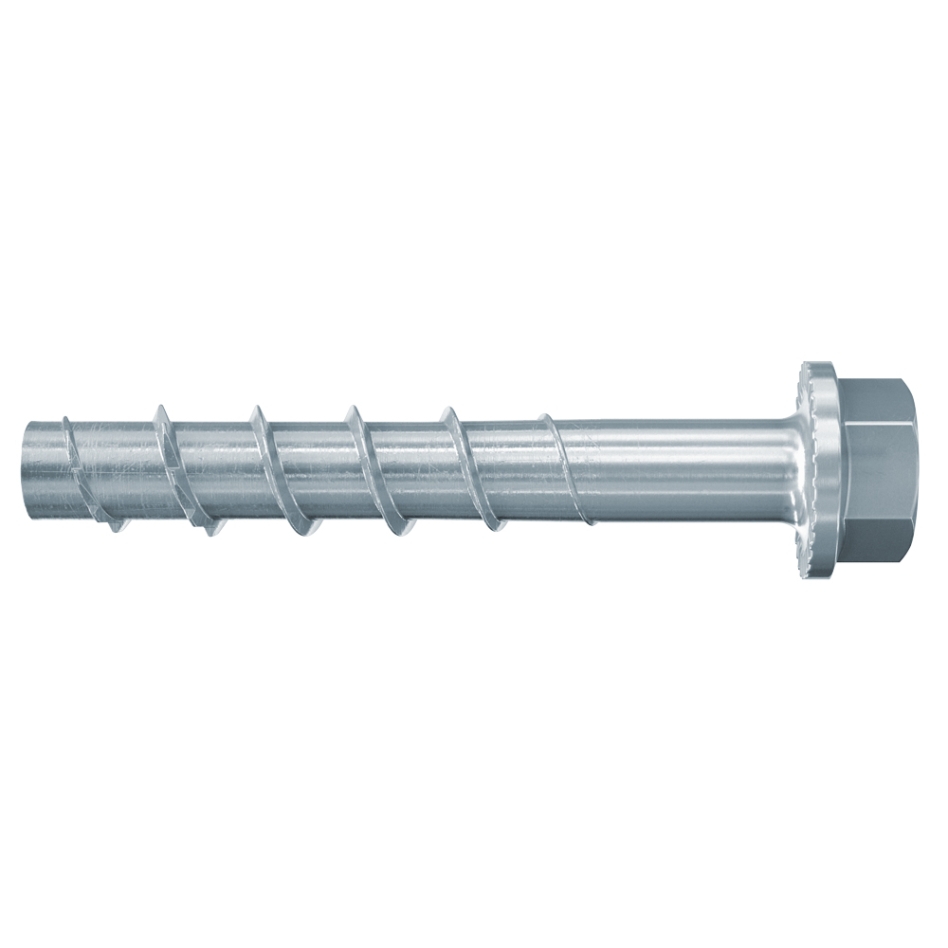

Fischer 536875 Concrete screw ULTRACUT FBS II 14 x 95 30/10 US hexagon with U washer 536875 20 pieces

Fischer Betonschroef ULTRACUT FBS II 14 x 95 30/10 US zeskant met U-ring 536875 20 pieces

De sterke betonschroef voor optimaal montagecomfort. De fischer FBS II is de betonschroef voor optimaal montagecomfort. The special tooth geometry enables fast turning into concrete. Bij montage in plafond of vloer hoeft het boorgat niet schoonmaakt te worden. Dankzij de nationale goedkeuring is een meervoudige gebruik bij tijdelijke verankeringen, bijv. bij bekistingswerkzaamheden geen probleem. Voor de montage van de muurbout wordt een tangentiële slagschroefmachine met een voor de slagschroevendraaier geschikte bit aanbevolen. De betonschroef kan bijvoorbeeld uitstekend voor het bevestigen van leuningen, botsbeveiligingen, consoles of bekistingen worden gebruikt.

Advantages

• High degree of flexibility in terms of load and thickness of mounting pieces through up to two approved screw-in depths.
• The special tooth geometry enables fast turning into concrete.
• There is no need to clean the drill holes when mounting in ceilings or floors or when using hollow drills with extraction.
• The spreading pressure-free anchoring (rear cutting) allows low edge and shaft distances.
• The ETA approval covers application in cracked concrete as well as seismic performance categories C1 and C2.
• The approval-compliant adjustment allows the concrete screw to be loosened 2x, placed slightly below the mounting piece and/or aligned.
• The national approval regulates multiple use in temporary anchoring, (e.g., in formwork work).

Characteristics

• Allen bolt with hex head.
• Fast turn-in due to special tooth geometry.
• Approved for multiple use in temporary anchoring.
• ETA approval for cracked concrete: Maximum safety.
• When mounted in ceilings or in the floor, the drill hole does not need to be cleaned.

Applications

• Handrails Consoles/Footplate, Metal profiles, Scaffolding, Drive protection, Results/beam anchors, Temporary assembly of e.g. construction-related equipment, Formwork braces

Building Materials

• Approved for: Concrete C20/25 to C50/60, cracked and uncracked Also suitable for: Concrete C12/15 Solid building materials

Approval

• ETA-13/0352 DoP No. 0078 - EN Z-21.8-2049

Assembly

• The FBS II is suitable for push-through mounting.
• When mounting in ceiling and floor, the drill hole does not need to be cleaned. When drilling into floors, drill deeper 3x the drill diameter.
• A tangential impact screwdriver with a bit suitable for the impact screwdriver is recommended for assembly.
• If the screw head lies against the mounting piece, the screw is correctly mounted (optical check of mounting).

Technical data

• Approval
• DIBt approval
• Drill hole diameter d0 14 [mm]
• Min. hole depth for through-hole mounting h2 110 [mm]
• Dimension screw ds x ls 16 x 95 [mm]
• Recording SW21

Standard included

• 20 pieces
