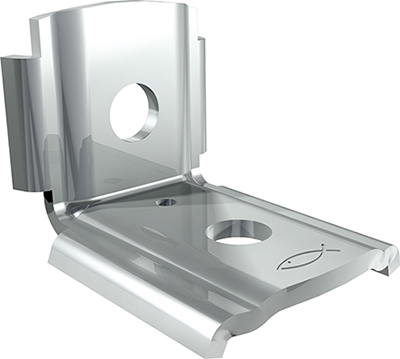

Fischer 538668 Universal bracket MW 90° 50 pieces

Fischer 538668 Universal bracket MW 90° 50 pieces

The design elements Fischer Universal Bracket MW 90° and MWU 90°, together with the sliding nut FSM Clix P, ensure precisely fitting and simple connections of mounting rails to each other or to the substrate. The special retaining clips allow the MW 90° to be correctly positioned both longitudinally and transversely to the FLS rail profile. The MWU can be space-savingly attached directly to the substrate. Matching the FSM Clix P 8 and plugs with an outer diameter of 8 mm, the MW and MWU angle have a hole with a diameter of 8.5 mm. The galvanized version is suitable for installations in buildings.

Advantages

• The characteristic locking clips of the MW 90° mounting angle guarantee a stable fit on all sides of the profile
• The long slotted hole on the flat side of the Mounting Angle MWU 90° allows a firm connection to the substrate
• The standardized holes in the Mounting Angle allow precise connection to FLS profiles in combination with Quick-click nut FSM Clix P and bolt.

Technical data

• Hole diameter : 8.5 mm
• Max. recommended shear load : - (kN)
• Tightening torque : 10 Nm
• Content : 50
