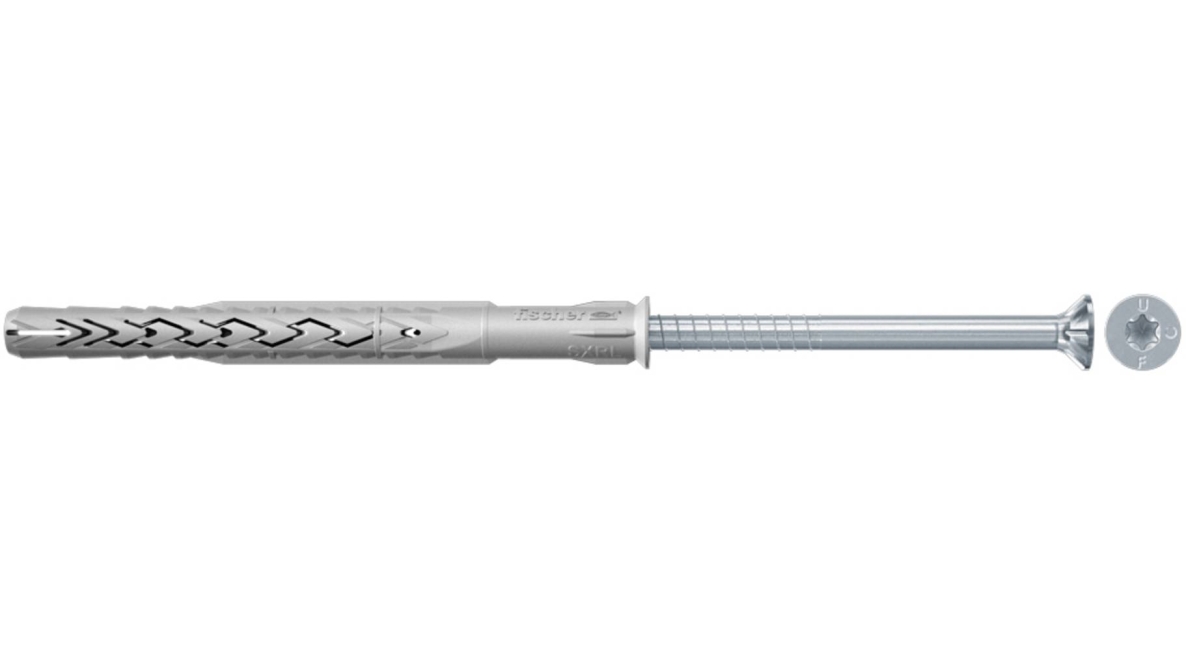

Fischer 540113 Construction plug SXRL 8 x 60 screw with countersunk head 50 pieces

Fischer 540113 Construction plug SXRL 8 x 60 countersunk screw 50 pcs.

The Fischer Construction plug SXRL-T with the Fischer countersunk screw with T30 insertion is approved for multiple fixings of non-load-bearing systems in masonry, concrete and aerated concrete. In masonry made of perforated brick, the spreading zones of the plug ensure even force distribution, in aerated concrete and solid material they join together to form a long spreading element. With the locking bolt made of galvanized steel, the construction plug is very suitable for fixings in interior construction, such as for windows, coat racks, hanging cupboards or television consoles.

Advantages

• The long spreading element makes the SXRL a multi-use product
• The plug's special geometry distributes the fastening forces evenly over the walls of the drilled hole
• When anchoring in perforated and solid building materials, the two spreading zones realize optimal fastening values
• When the lure is placed deeper, the longer ribs prevent the lure from rotating with it during mounting.

Applications

• Perforated brick
• Aerated concrete
• Hollow building block of light concrete
• Perforated limestone
• Thermal insulation blocks
• Solid building block of normal and lightweight concrete
• Full brick
• Solid limestone
• Concrete >= C12/15
• High-density natural stone
• Gypsum Blocks

Building Materials

• The SXRL is suitable for push-through mounting
• In masonry made of perforated stone, the two spreading zones ensure force distribution that spares the substrate. Due to the second spreading zone, sills of perforated stone are not irreparably damaged and can therefore be used to further conduct the forces
• The two spreading zones merge into the aerated concrete and solid building materials to form one long spreading element and guarantee an even, surface-distributed distribution of the load in the substrate
• Ideally suited for fixing wooden structures
• For metal constructions, it is recommended to use plugs with a wide sleeve edge and hexagonal head screws with preformed washers.

Technical data

• Approval : relevant
• Drill diameter : 8 mm
• Plug length : 60 mm
• Min. hole depth for through-hole mounting : 70 mm
• Intake : T30
• Content : 50
