Fischer 68508 Sleeve anchor FSA 12/50 B electrolytically galvanized steel 20 pieces

Fischer 68508 Sleeve anchor FSA 12/50 B electrolytically galvanized steel 20 pieces

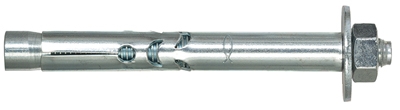

The Fischer Sleeve Anchor FSA-B is a galvanized steel anchor with nut and washer for structural fasteners made of galvanized steel. The Sleeve anchor FSA-B is inserted in the time-saving push-through assembly. When tightening, the cone is pulled into the spreader sleeve and tightens against the wall of the drilled hole. The punch holes absorb the tightening slip just like a crumple zone. Thus, the mounting piece is pulled against the anchoring substrate. The Fischer Sleeve Anchor FSA-B is ideal for fixing non-safety-relevant fixings such as of ladders, doors and temporary fixings in uncracked concrete.

Advantages

• The optimized geometry minimizes the zone energy and therefore allows use in extremely small spaces. This enables user-friendly mounting
• The anchor shape allows the use of different head shapes for flexible design solutions: hex head (type S), bolt design with nut and washer (type B)
• The detachable screw mount allows for flat surface removal.

Applications

• Concrete C12/15 to C20/25, uncracked
• High-density natural stone

Building Materials

• The FSA is suitable for push-through mounting
• When torque is applied, the cone is pulled into the spreader clamp, clamping it against the borehole wall
• The crescent shape acts as a zone that absorbs the torque slip such that the attachment is pulled onto the anchor base.

Technical data

• Drill hole diameter : 12 mm
• Min. drill hole depth for through-hole mounting : 115 mm
• Max. thickness of attachment : 50 mm
• Plug length : 121 mm
• Thread : M 10
• Key width : 17 mm
• Pad (outer diameter x thickness) : 30 x 2.5 mm
• Content : 20
