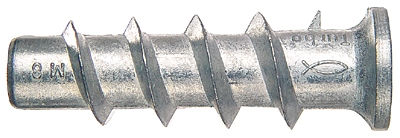

Fischer 78416 Cellular concrete anchor FTP M 8 metal 25 pieces

Fischer 78416 Cellular concrete anchor FTP M 8 metal 25 pieces

The aerated metal concrete anchor for metric bolts.

Special features

• The fischer Turbo aerated concrete anchor FTP M is a special plug for fasteners in aerated concrete.
• The metal plug is inserted into the drilled hole in the pre-piercing assembly with an Allen wrench.
• In the process, the spiral external thread cuts accurately into the construction material.
• The fischer Turbo aerated concrete anchor FTP M is particularly suitable for securely fixing mirror cabinets, radiators and TV consoles into aerated concrete.

Advantages

• The socket bit allows the FTP M to be set without the need for a special mounting attachment.
• This allows for easy assembly.
• For even greater safety, the FTP M achieves a very high load capacity in aerated concrete.
• The spiral male thread secures itself into the aerated concrete with a form fit.
• This allows it to be set without applying force.
• The special geometry allows virtually spreading pressure-free anchoring.
• This allows small distances of edge and spacing, and prevents gaps in plastered surfaces.

Characteristics

• No mounting attachment required.
• Large fastening forces due to suitable connection in the construction material.
• Comfortable assembly: less effort of force.
• Low edge and shaft distances due to spreading pressure-free anchoring

Applications

• Paintings Lamps Shelves Mirror cabinets Curtain rails Cable and pipe brackets Distance-mounted structures Radiators TV consoles

Building Materials

• Aerated concrete Gypsum blocks

Assembly

• The FTP M is suitable for front-panel mounting.
• The aerated concrete anchor cuts itself precisely into the aerated concrete during application.
• Suitable for metric screws M6.
• When mounting with Allen wrench: The size of the socket corresponds to the diameter of the screw, i.e. fit with socket size 6.
• When installing using the cordless screwdriver, work with low torque and use matching 6-sided bit FTP EM.

Technical data

• Drill hole diameter d0 10 - (12) [mm].
• Min. drill hole depth h1 70 [mm].
• Plug length l 60 [mm]
• Metric screw M M 8
• Min. screw-in depth lE,min 20 [mm].
• Max screw-in depth lE,max 25 [mm].

Standard included

• 25 pieces
