Fischer 90283 Anchor rod FIS A M 12 x 140 ev steel grade 5.8 10 pcs.

Fischer 90283 Anchor rod FIS A M 12 x 140 ev steel grade 5.8 10 pcs.

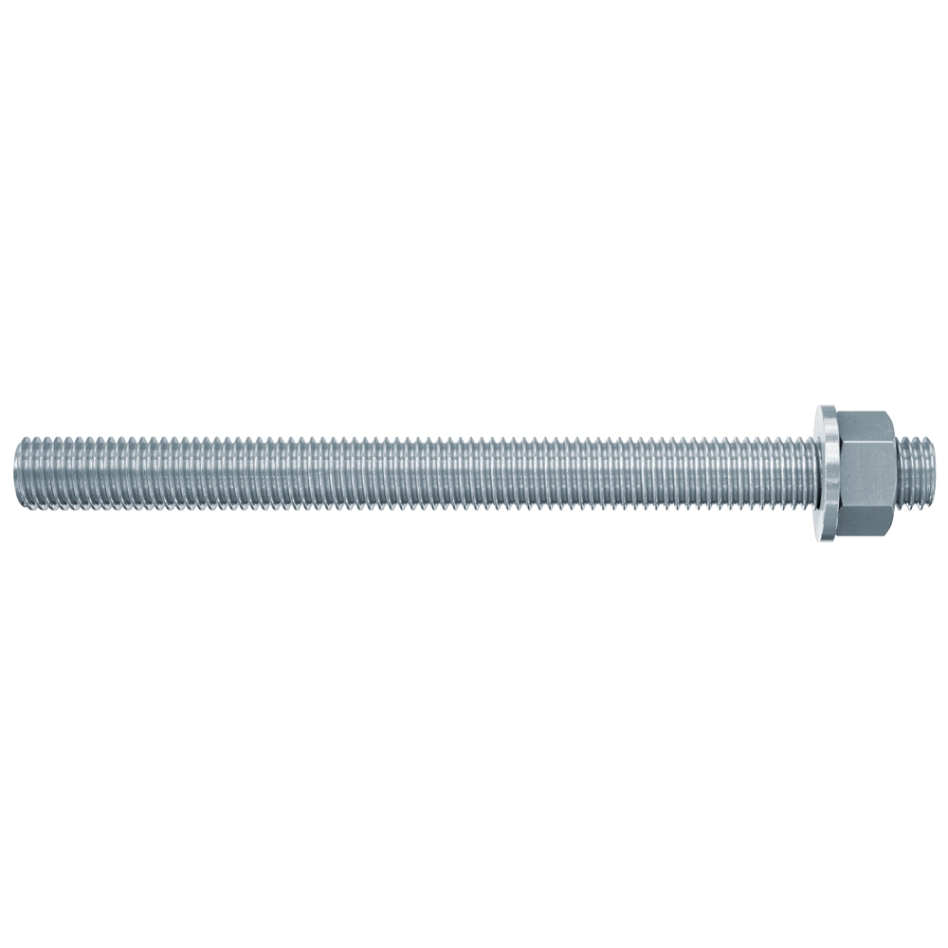

The Fischer Threaded Rod FIS A is made of galvanized steel in steel grade 5.8. The threaded rod in a system component for the various Fischer Injection Mortars. In combination with the injection mortars, the Fischer Threaded Rod is suitable and approved for any substrate. For the maximum load-bearing capacity of the system, a thorough cleaning of the drill hole is recommended. The system of galvanized anchor rod in combination with Fischer Injection Mortars is suitable or approved for fixing in dry indoor areas.

Advantages

• The fastening system, consisting of the threaded rod FIS A or the female threaded anchor FIS E and one of the injection mortars FIS V, FIS VT or FIS P Plus, can be chosen depending on the application requirements, enabling many application possibilities
• The application possibilities of approved threaded rods FIS A from M6 to M30 are numerous.

Applications

• In combination with various Fischer Injection Mortars, the Anchor Rod FIS A is approved or suitable for various substrates.

Building Materials

• The threaded rod FIS A is suitable for front and through hole mounting
• The threaded rod FIS A is pressed to the bottom of the borehole by hand, turning it slightly.

Technical data

• Approval : relevant
• Drill hole diameter in perforated brick : 20 mm
• Drill hole diameter in solid brick : 14 mm
• Thread : M 12 mm
• Length : 140 mm
• Contents : 10
