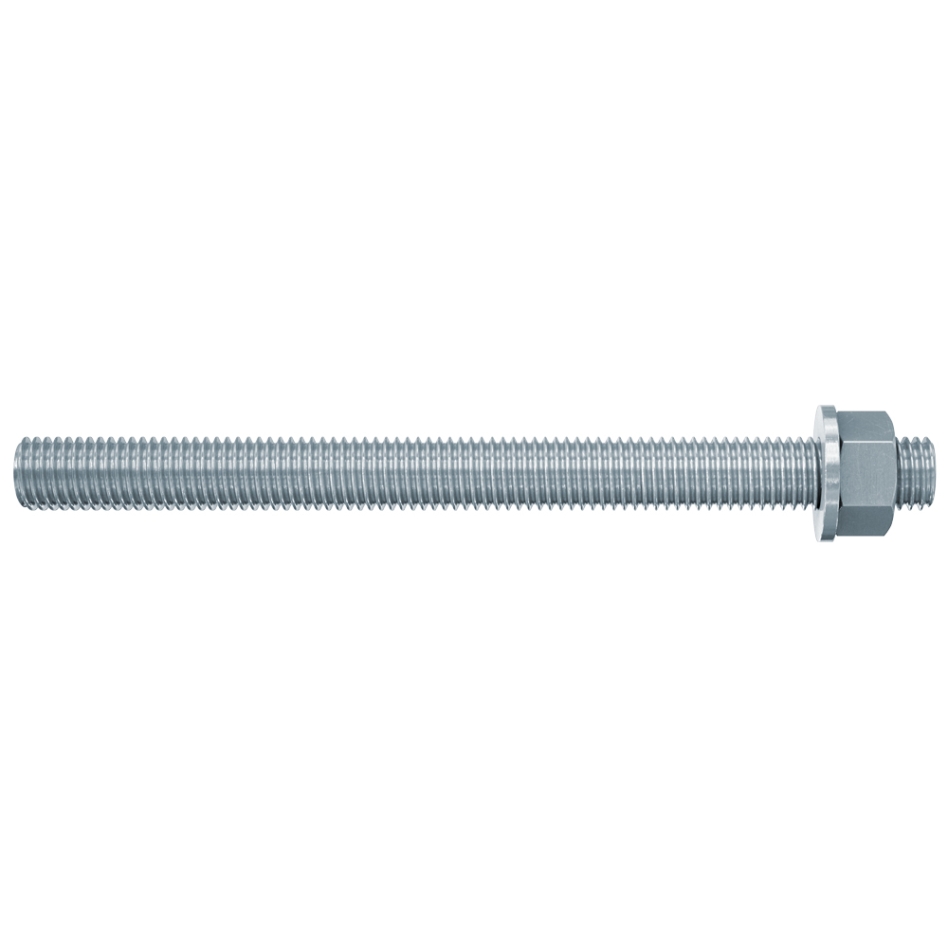

Fischer 519399 Anchor rod FIS A M 12 x 180 ev steel grade 8.8

Fischer Anchor rod FIS A M 12 x 180 ev steel grade 8.8 519399

Features

• The fischer threaded rod FIS A is made of galvanized steel in steel quality 8.8
• The threaded rod in a system part for the different fischer Injection Mortars
• In combination with the injection mortars, the fischer Threaded rod is suitable and approved for any substrate
• For the maximum load capacity of the system, a thorough cleaning of the borehole is recommended
• The system of galvanised anchor rod in conjunction with fischer injection mortars is suitable or approved for fixing in dry indoor areas
• The versatile threaded rod FIS A
• The universal solution for various types of fischer Injection Mortar
• For a clear assortment and simplified stock management
• In combination with the various fischer Injection Mortars approved for anchoring in cracked and non-cracked concrete, solid stone masonry, porous stone masonry and aerated concrete
• Optimum load adjustment thanks to variable anchoring depth
• This reduces mounting and material costs
• The fixing system, consisting of the threaded rod FIS A or the internal threaded anchor FIS E and one of the injection mortars FIS V, FIS VT or FIS P Plus, can be selected to suit the application requirements and allows for a wide range of applications
• The application possibilities of approved threaded rods FIS A from M6 to M30 are numerous
• The threaded rod FIS A is suitable for front and side installations
• The threaded rod FIS A is pushed by hand lightly into the bottom of the borehole

Specifications

• Approval: Yes
• Drill hole diameter in perforated brick 20 mm
• Drill hole diameter in solid brick 14 mm
• DraadM: 12 mm
• Length: 180 mm
• Packaging Unit: Pieces
• In combination with various fischer Injection Mortars, the Anchor rod FIS A is approved or suitable for various substrates

Includes

• 10 stuks
