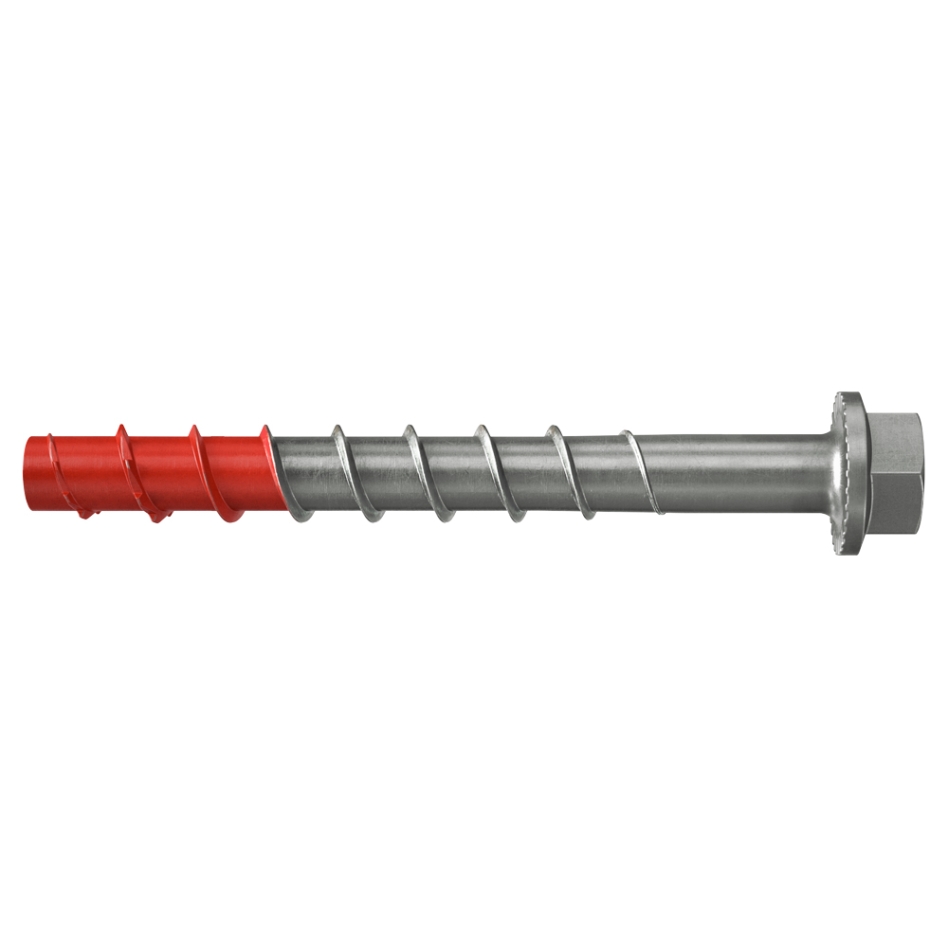

Fischer 543566 FBS II 8 x 70 5/- US stainless steel A4 hexagon with U-ring

Fischer FBS II 8 x 70 5/- US stainless steel A4 hexagon with U-ring 543566

Features

• The strong concrete screw for optimum outdoor installation comfort
• The specially hardened red tip guarantees a quick and even safer assembly
• The stainless steel concrete screw guarantees a high level of corrosion resistance, especially for wet rooms and external applications
• The approval-compliant adjustment allows the concrete screw to be loosened 2x, placed slightly below the mounting surface and/or aligned.The specially hardened red tip allows for faster and safer assembly
• The stainless steel concrete screw guarantees a high level of corrosion resistance, especially in wet areas and external applications
• The special geometry of the teeth allows fast screwing into the concrete
• Drill holes do not have to be cleaned during vertical installation (ceiling and floor)
• For floor fixing, the hole must be drilled 3 times deeper than the diameter of the drill hole
• The ETA approval relates to cracked concrete in seismic applications in categories C1 and C2
• The attachment can be unscrewed up to two times within the approval to fit a shim of up to 10 mm or to align the attached part and then re-tighten the screw
• The three anchoring depths allow the use of the FBS II A4 in many different applications with a high degree of flexibility
• The short FBS II A4, with its reduced anchoring depth, allows for short borehole depths, fast installation and reduced risk of hitting reinforcements

Specifications

• Approval: relevant
• Borehole diameter: 8 mm
• Min. borehole depth for push-through assembly: 80 mm
• Dimensions screw: 10 x 70 mm
• Screw-in depth / clamping range: 50 / 20 mm
• Screw-in depth / clamping range: - / - mm
• Screw-in depth / clamping range: 65 / 5 mm
• Recording: SW 13

Applications

• Concrete C20/25 to C50/60, cracked and uncracked
• Concrete C12/15
• Solid building materials
• High density masonry

Includes

• Pieces per pack: 50
