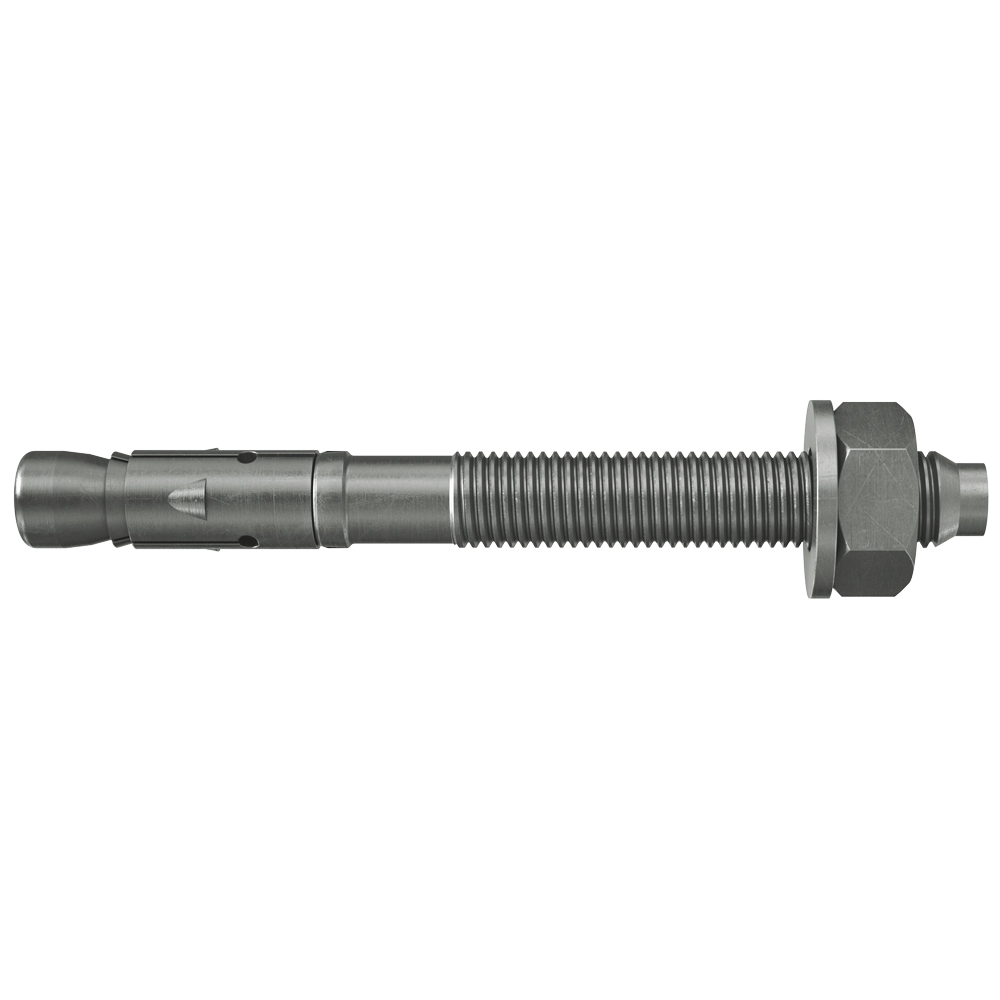

Fischer 501410 Piercing anchor FAZ II 10/70 stainless steel A4

Fischer Piercing anchor FAZ II 10/70 stainless steel A4 501410

Description

• The stainless steel bolt anchor for the toughest demands in concrete
• Strong and flexible
• One anchor - two anchoring depths: A reduced anchoring depth saves time and cost during drilling
• Strong attachment: The spreader clip guaranteed the greatest load capacity
• Fewer attachment points and smaller anchor plates save time and cost
• Easy assembly: fewer hammer blows and minimal tightening slip
• This saves time and power
• Stainless steel: maximum safety for outdoors
• Extremely suitable for large thicknesses of mounting pieces
• According to the new assessment (ETA), the tractive force is significantly increased
• As a result, fewer anchors are necessary
• The variable anchoring depths at sizes M8 to M16 allow for the first millimeter-accurate adjustment to loads
• The version with cap nut offers a visually attractive anchorage and also protects from injury due to its round shape
• The first sectional M6 anchor with an ETA rating option 1, for safe and approved anchorages
• International approvals ensure optimum safety and best performance.

Technical data

• Approval:Relevant
• ICC endorsement: Relevant
• Seismic approval: C1 / C2
• Drill hole diameter: 10 mm
• Min. hole depth for through-hole mounting: 145 mm
• Plug length: 155 mm
• Max. useful length lift-stand/lift-red: 70/90 mm
• Thread: M 10 x 113 mm
• Key width : 17 mm

Building Materials

• Concrete C20/25 to C50/60, cracked and uncracked
• Concrete C12/15
• Concrete C80/95 (classification available)

Delivery Scope

• Pieces per package: 20
