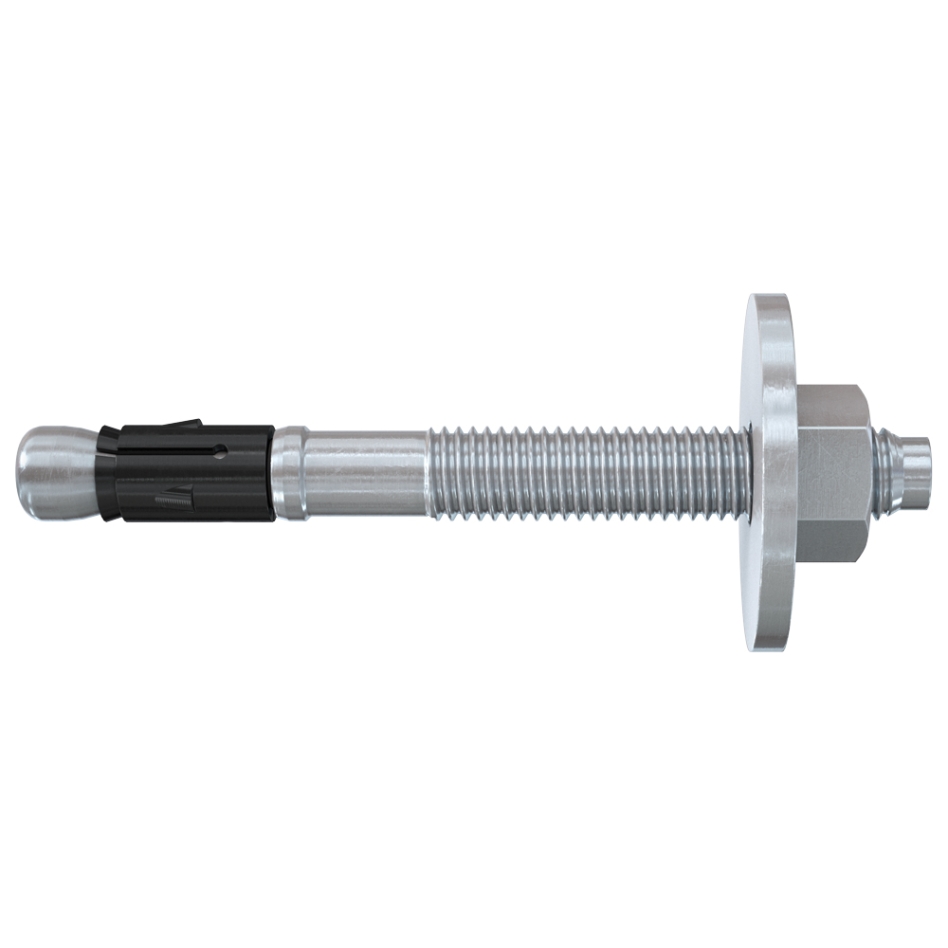

Fischer 96367 Piercing anchor FAZ II 12/120 GS with large washer zinc plated

Fischer Piercing anchor FAZ II 12/120 GS with large washer zinc plated 96367

Features

• The anchor bolt with large washer for the toughest requirements
• Strong and flexible
• Pre-assembled washers for parts with slotted holes
• This facilitates alignment and saves time during assembly
• Minimum tightening lip
• Simple assembly reduces time and effort
• With staggered clip for maximum load capacity: this requires fewer fastening points and smaller anchor plates
• This saves time and money
• Approved for cracked concrete and fire testing: maximum safety
• One anchor - two anchoring depths: A reduced anchoring depth saves time and money during drilling
• The FAZ II GS with 8, 10 and 12 mm diameters are suitable for securing long hole fasteners thanks to the special washer and ensure minimal assembly work
• The significantly larger outside diameter of the washers for the FAZ II 16 GS guarantees a larger supporting surface and thus enables the use in timber constructions
• The pre-mounted washer allows for quick installation
• In addition, the FAZ II GS offers all the advantages of the FAZ II

Specifications

• Approval: Relevant
• Seismic-approval: C1 / C2
• Borehole diameter: 12 mm
• Min. drill hole depth for through hole mounting: 210 mm
• Plough length: 220 mm
• Draad: M 12 x 171 mm
• Wrench size : 19 mm
• Washer (outer diameter x thickness): 30 x 3 mm
• Anchoring depth (standard): 70 mm
• Max. thickness of attachment (standard): 10 mm
• Anchoring depth (reduced): 50 mm
• Max. thickness of attachment (reduced): 30 mm

Building materials

• Concrete C20/25 to C50/60, cracked and uncracked
• Concrete C12/15
• High density natural stone

Includes

• Pieces per pack: 20
