Fischer 50110 Plug S 10

Fischer Plug S 10 50110

Description

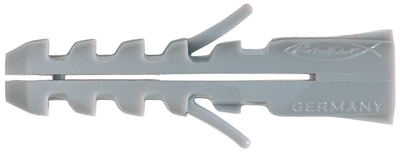

• The assembly-friendly nylon plug with 2-fold spread
• The rimless plug is suitable for front and through-hole mounting
• For quick assembly, the plug can be easily inserted
• Twist protection prevents turning in the drill hole
• This ensures a high degree of safety during assembly
• The rimless plug sleeve allows the plug to be set as deep as necessary under the plaster on the substrate, thus achieving maximum load capacity
• Because the plug spreads in only two directions, the spreading pressure forces can be directed so that by turning the plug, they run parallel to the edge of the building material
• This allows for smaller edge distances
• The slimline plug geometry allows the plug to be easily pushed into the drilled hole
• This allows for quick and easy installation
• Wings keep the plug from rotating along in the drilled hole, allowing safe mounting.

Technical data

• Drill hole diameter: 10 mm
• Plug length: 50 mm
• Min. drill hole depth: 70 mm
• Chipboard screw: 6 - 8 mm

Building Materials

• Concrete
• Solid limestone
• High-density natural stone
• Solid brick of lightweight concrete
• Full brick

Delivery Scope

• Pieces per package: 50
