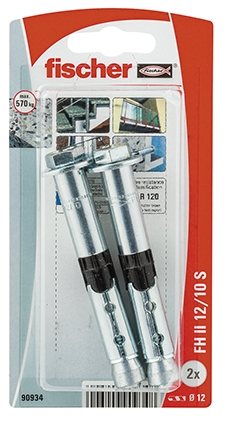

Fischer 090934 Safety anchor FN II 12/10 S K NV

Fischer Safety anchor FN II 12/10 S K NV 090934

Features

• The fischer Safety anchor FH II S with hexagonal head is a sleeve anchor made of galvanised steel
• The anchor is placed in the time-saving push-through assembly
• When the anchor is tightened, the cone is drawn into the spreader sleeve and clamps against the wall of the borehole
• The black plastic ring prevents the anchor from rotating and absorbs the slipstream
• This pulls the mounting piece against the anchoring base
• The fischer safety anchor FH II S with hexagonal head is particularly suitable for fixing brackets, steel constructions and cable ducts in cracked and uncracked concrete
• The interlocking anchor for fixings with an attractive design in cracked concrete
• International approvals guarantee maximum safety and best performance
• The European Technical Assessment even covers the use in earthquake zones (seismic C1 and C2)
• The relatively flat head of the bolt makes the anchor very discreet
• The design between the bolt and the anchor sleeve ensures a high absorption shear force
• This means that fewer fastening points are required
• Optimized geometry reduces the energy required for assembly
• The approval also covers the use of hollow drills
• The FH II is suitable for push-through mounting
• When torque is applied, the cone is pulled into the spreader clamp, thus clamping it against the borehole wall
• The black plastic ring prevents rotation during anchor holding and acts as a torque absorbing zone to pull the attachment onto the anchor base
• Available head shapes for flexible design solutions: Countersunk head (type SK - for flat surfaces and fixing points which can then be secured against theft), hexagon head (type S), bolt version with nut and washer (type B) and cap nut (type H)

Specifications

• Drill hole diameter: 12mm
• Min. borehole depth for through hole mounting: 90mm
• Plug length: 90mm
• Max. thickness of attachment: 10mm
• Draad: M8
• Wrench size: 13mm
• Packaging Unit: Pieces

Applications

• Concrete C20/25 to C50/60, cracked and uncracked
• Concrete C12/15
• High density natural stone

Includes

• 2 stuks
