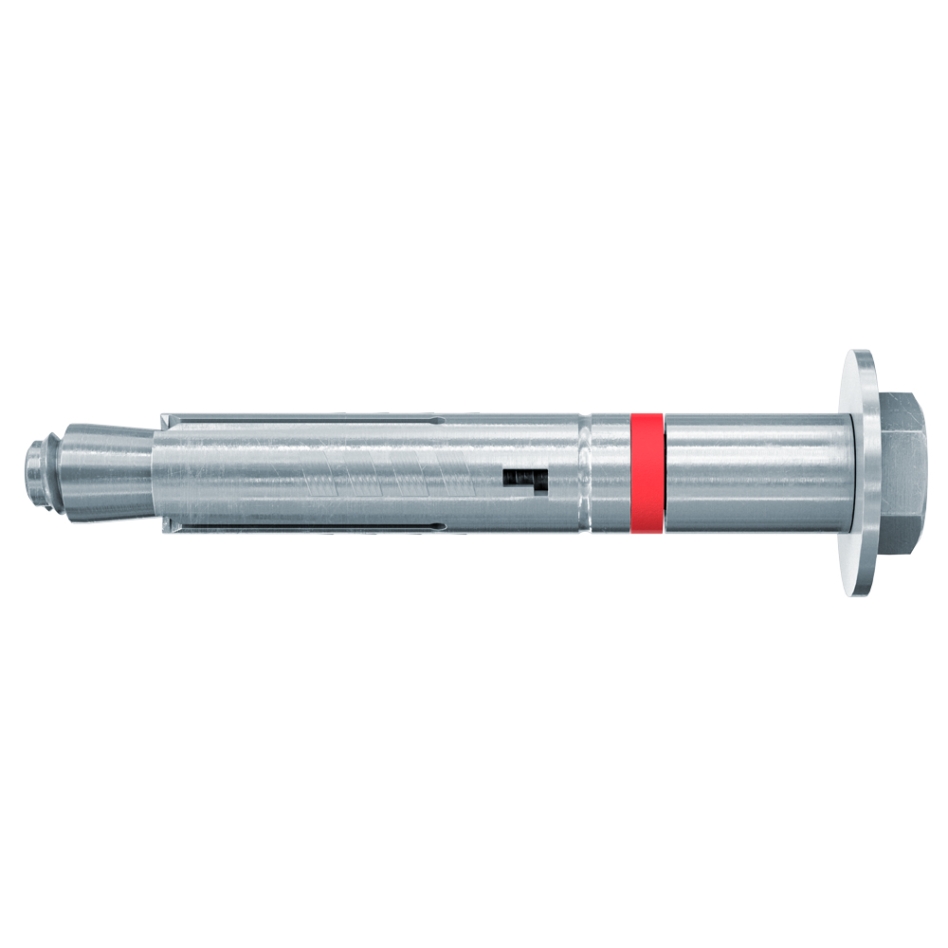

Fischer 90269 Sleeve anchor TA M T/25 S for push through assembly zinc plated

Fischer Sleeve anchor TA M T/25 S for push through assembly zinc plated 90269

Features

• The easy-to-install socket anchor for fixing in uncracked concrete
• Easy installation due to low application effort
• Minimal spindle and edge distances due to uniform load introduction
• ETA approval for uncracked concrete The optimised geometry minimises the energy required to produce a jet and therefore allows use in extremely confined spaces
• This allows for user-friendly installation
• The triple-spread sleeve enables even force distribution with small centre-to-centre and edge-to-edge distances
• This makes TA M-T extremely flexible
• TA M-BP version with swivel head prevents dismounting of the attachment for use as anti-theft and anti-burglary equipment
• The detachable screw fastening allows for flat removal from the surface

Specifications

• Approval: Relevant
• Borehole diameter: 15 mm
• Min. borehole depth for push-through assembly: 110 mm
• Plug length: 100 mm
• Max. thickness of attachment : 25 mm
• Draad: M 10
• Wrench size : 17 mm
• Washer (outer diameter x thickness): 30 x 2.5 mm

Building materials

• Concrete C20/25 to C50/60, uncracked
• Concrete C12/15
• High density natural stone

Includes

• Pieces per pack: 25
